Weaver Base 46 -Winchester 70/ Savage Accutrigger/ Ruger American Centrefire/ Mauser Front
Regular price
$15.00
Couldn't load pickup availability

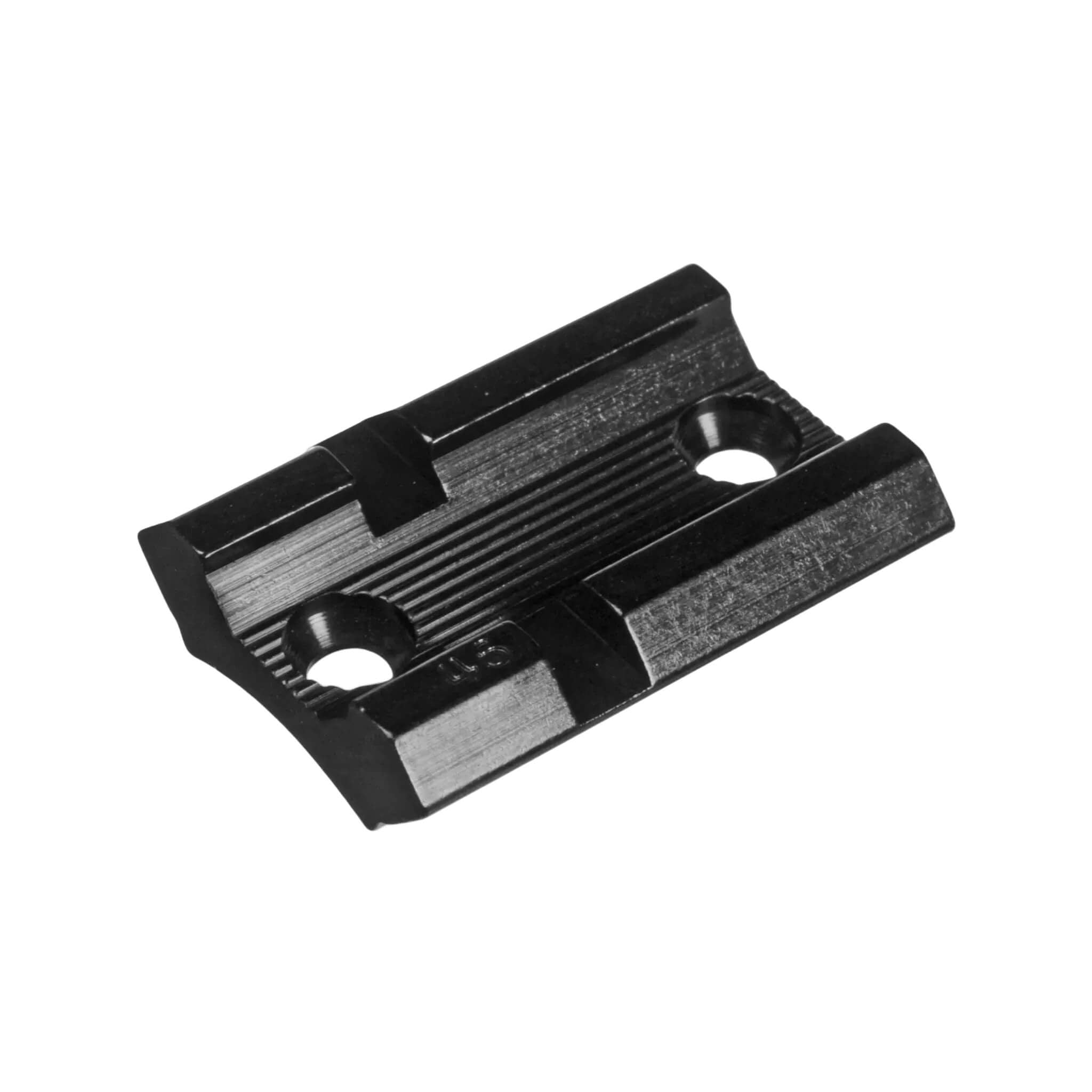

The gloss black Top Mount Base #46 from Weaver has been machined to tight tolerances for a custom fit. The aluminum base offers maximum strength so that the rings will hold tight.
Compatibility
Rear base For:Navy Arms Country Boy MuzzleloaderSavage Axis Series, 10, 12, 110, 112 (all long action Accutrigger); 10 ML IIStevens Savage / Stevens 200Winchester 52 (same hole spacing)
Front Base For:Anschutz 1568Beretta Mato RifleBrowning Bolt Action BBR, Hi-Power, other calibers, older models, BBR Bolt Action, long and short actionsChurchill 950, 950-C, 972-CColt 57Cooey 71Enfield with receiver cut down like a Winchester 70H&R 300, 301, 330, 370 (pre-1973); 300, 301 long action in 270, 30-06, 7mm; 300 Win (1973+)Herters J9High-Standard High-PowerInterarms ViscountMarlin 455, MR71.4" diameter Mauser Receiver Ring 98FN, 1.3" diameter receiver ring (Swedish 96); Bauer 3000, 4000Musgrave Mark I, II, III, IVNavy Arms Country Boy MuzzleloaderParker Hale 1000, 1000C, 1100, 1200, 1700Savage Axis Series, 10, 12, 16 (short actions); Striker; Pistol; 510; 512; 516 (short action); 10 ML (2-piece only) pre-2003 models; 110, 112, 116 (long actions); 210 Shotgun (with X-high rings) pre-2003 models; 10, 12, 110, 112 (long action AccuTriggers); 10 ML IISears 50, 51, 51L, 53Smith & Wesson Mauser Actions with 1.3" diameter small receiver ringStevens 110E, Savage / Stevens 200Voere, 2165/1, 2165/2, 2165/3 & 2165/4 (Mauser action)Weatherby FN Mauser-style actionsWinchester 52 (same hole spacing), 54, early models, 70 with serial number below #66 350, 70 Long Action (same hole spacing), 670, 770, 70 Long Action (different hole spacing), 70 Super Express, 70 Short Action (1984+), 70 WSM, 70 WSSM
Note: For Savage 10, 12, and 16 short actions; Striker; Pistol; 510; 512; 516 short action; 10 ML (2-piece only) pre-2003 models with shorter tube scopes or red dot scopes use #402 extension front base or one-piece base if available. Extension base allows an extra 0.689".
Note: For Savage / Stevens 200 with shorter tube scopes or red dot scopes use #402 extension front base or one-piece base if available. Extension base allows an extra 0.689".
Note: For 1.4" diameter Mauser Receiver Ring 98FN and 1.3" diameter Receiver Ring (Swedish 96) shimming is probably required for perfect scope alignment. The rear base may require modifications for correct fit to military actions.
Note: The Winchester 52 with the same hole spacing may require bolt and/or safety alterations to function safely and properly. Consult with a qualified gunsmith.
Note: The handiest way to pinpoint the correct base for the Winchester 52 & Winchester 70 Long Action rifles is to check the spacing of the tapped holes for the rear base and compare it to the hole spacing for the front base. If the hole spacing is the same, then for model 52 use 46+ 46 and for model 52 use 25+ 57. If the hole spacing is different, then for model 70 use 47+ 46 and for model 70 use 49A+ 46.
Front Base For:Anschutz 1568Beretta Mato RifleBrowning Bolt Action BBR, Hi-Power, other calibers, older models, BBR Bolt Action, long and short actionsChurchill 950, 950-C, 972-CColt 57Cooey 71Enfield with receiver cut down like a Winchester 70H&R 300, 301, 330, 370 (pre-1973); 300, 301 long action in 270, 30-06, 7mm; 300 Win (1973+)Herters J9High-Standard High-PowerInterarms ViscountMarlin 455, MR71.4" diameter Mauser Receiver Ring 98FN, 1.3" diameter receiver ring (Swedish 96); Bauer 3000, 4000Musgrave Mark I, II, III, IVNavy Arms Country Boy MuzzleloaderParker Hale 1000, 1000C, 1100, 1200, 1700Savage Axis Series, 10, 12, 16 (short actions); Striker; Pistol; 510; 512; 516 (short action); 10 ML (2-piece only) pre-2003 models; 110, 112, 116 (long actions); 210 Shotgun (with X-high rings) pre-2003 models; 10, 12, 110, 112 (long action AccuTriggers); 10 ML IISears 50, 51, 51L, 53Smith & Wesson Mauser Actions with 1.3" diameter small receiver ringStevens 110E, Savage / Stevens 200Voere, 2165/1, 2165/2, 2165/3 & 2165/4 (Mauser action)Weatherby FN Mauser-style actionsWinchester 52 (same hole spacing), 54, early models, 70 with serial number below #66 350, 70 Long Action (same hole spacing), 670, 770, 70 Long Action (different hole spacing), 70 Super Express, 70 Short Action (1984+), 70 WSM, 70 WSSM
Note: For Savage 10, 12, and 16 short actions; Striker; Pistol; 510; 512; 516 short action; 10 ML (2-piece only) pre-2003 models with shorter tube scopes or red dot scopes use #402 extension front base or one-piece base if available. Extension base allows an extra 0.689".
Note: For Savage / Stevens 200 with shorter tube scopes or red dot scopes use #402 extension front base or one-piece base if available. Extension base allows an extra 0.689".
Note: For 1.4" diameter Mauser Receiver Ring 98FN and 1.3" diameter Receiver Ring (Swedish 96) shimming is probably required for perfect scope alignment. The rear base may require modifications for correct fit to military actions.
Note: The Winchester 52 with the same hole spacing may require bolt and/or safety alterations to function safely and properly. Consult with a qualified gunsmith.
Note: The handiest way to pinpoint the correct base for the Winchester 52 & Winchester 70 Long Action rifles is to check the spacing of the tapped holes for the rear base and compare it to the hole spacing for the front base. If the hole spacing is the same, then for model 52 use 46+ 46 and for model 52 use 25+ 57. If the hole spacing is different, then for model 70 use 47+ 46 and for model 70 use 49A+ 46.
