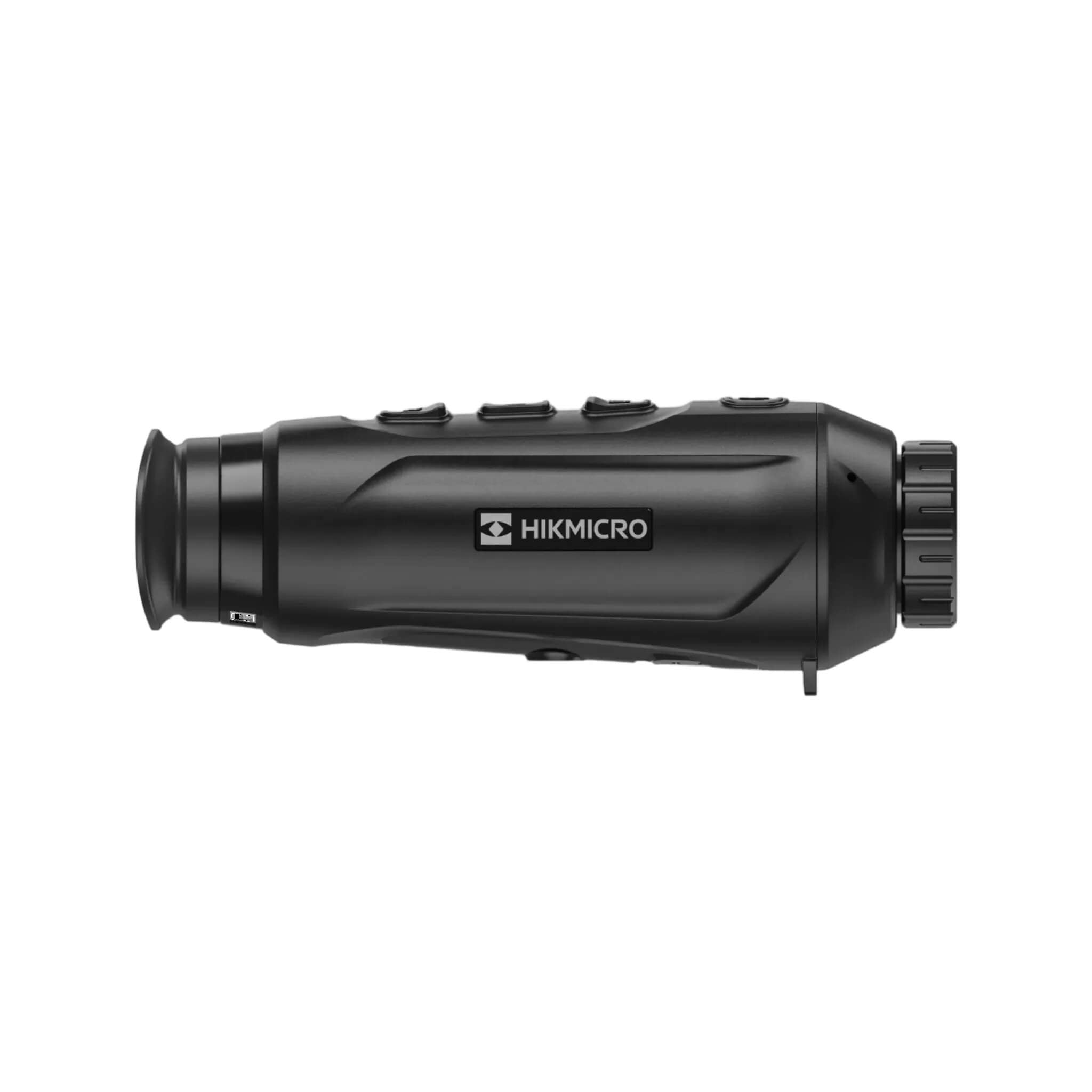

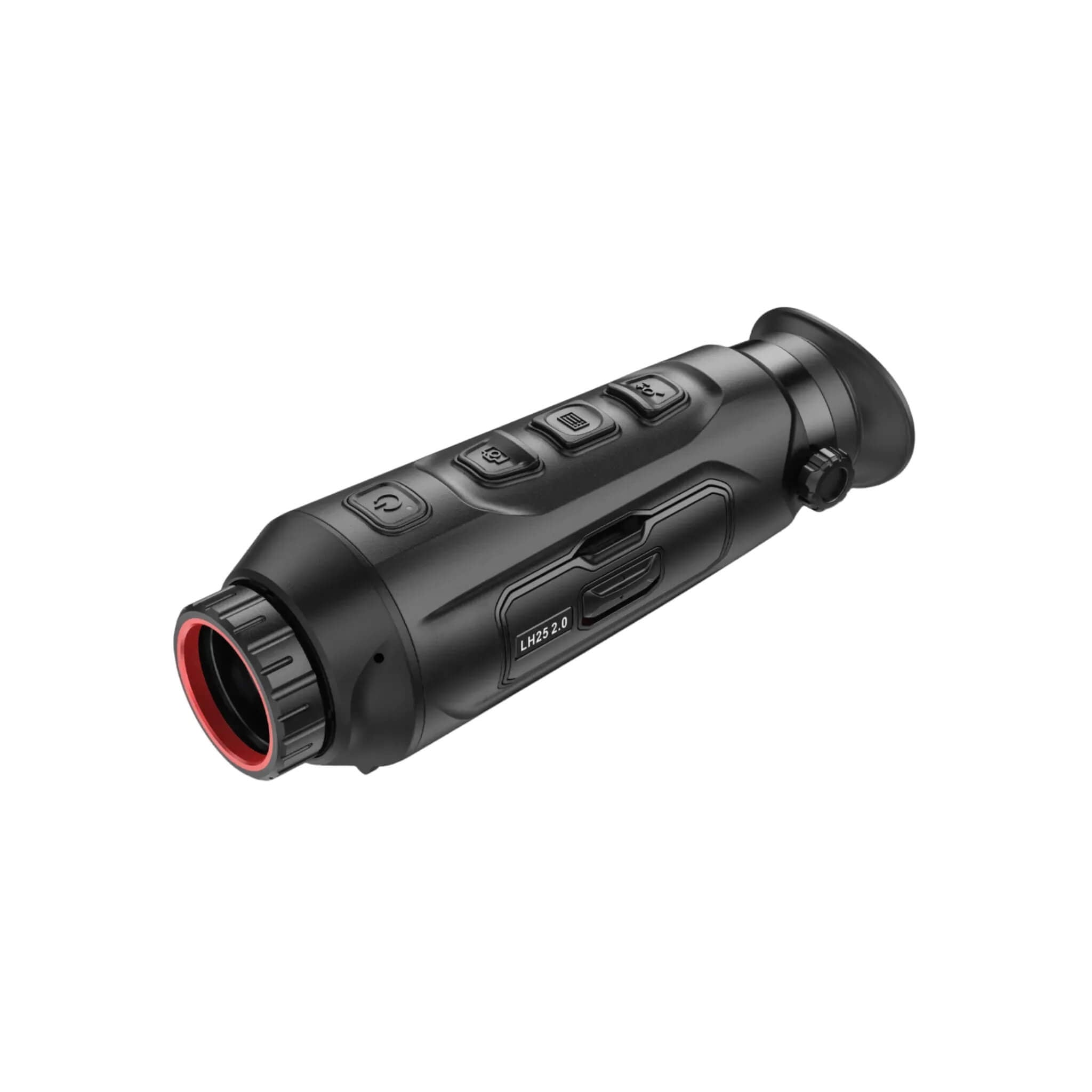

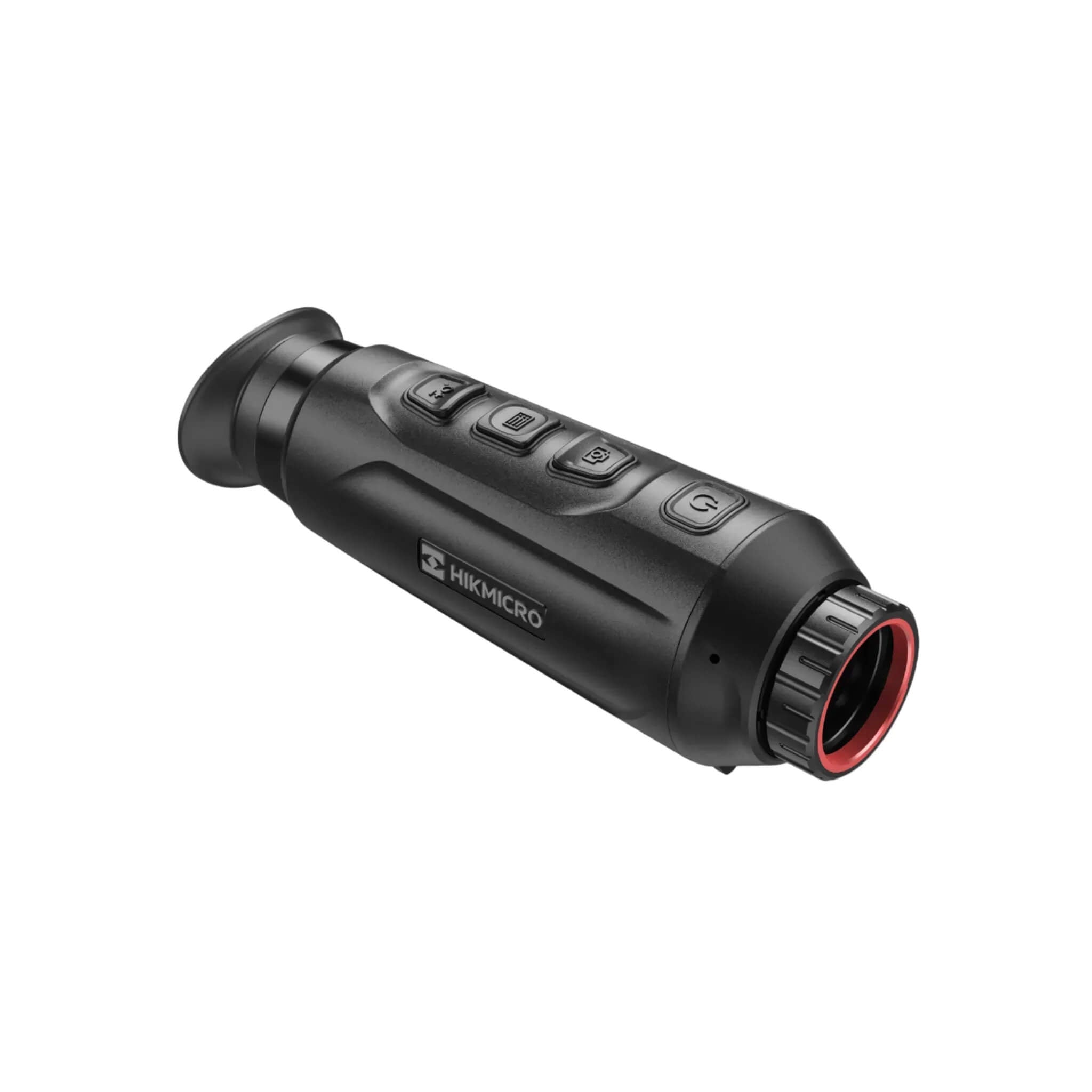

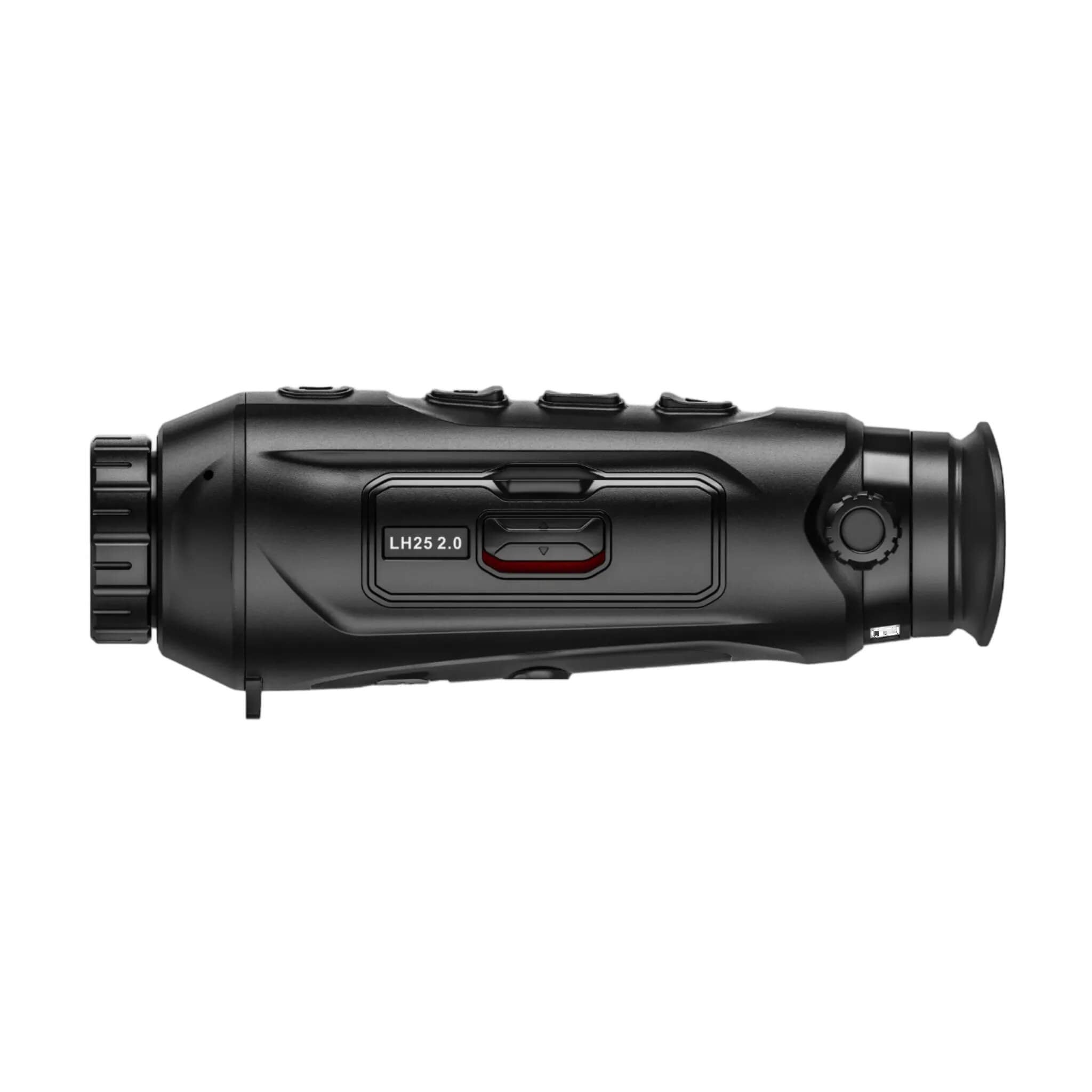

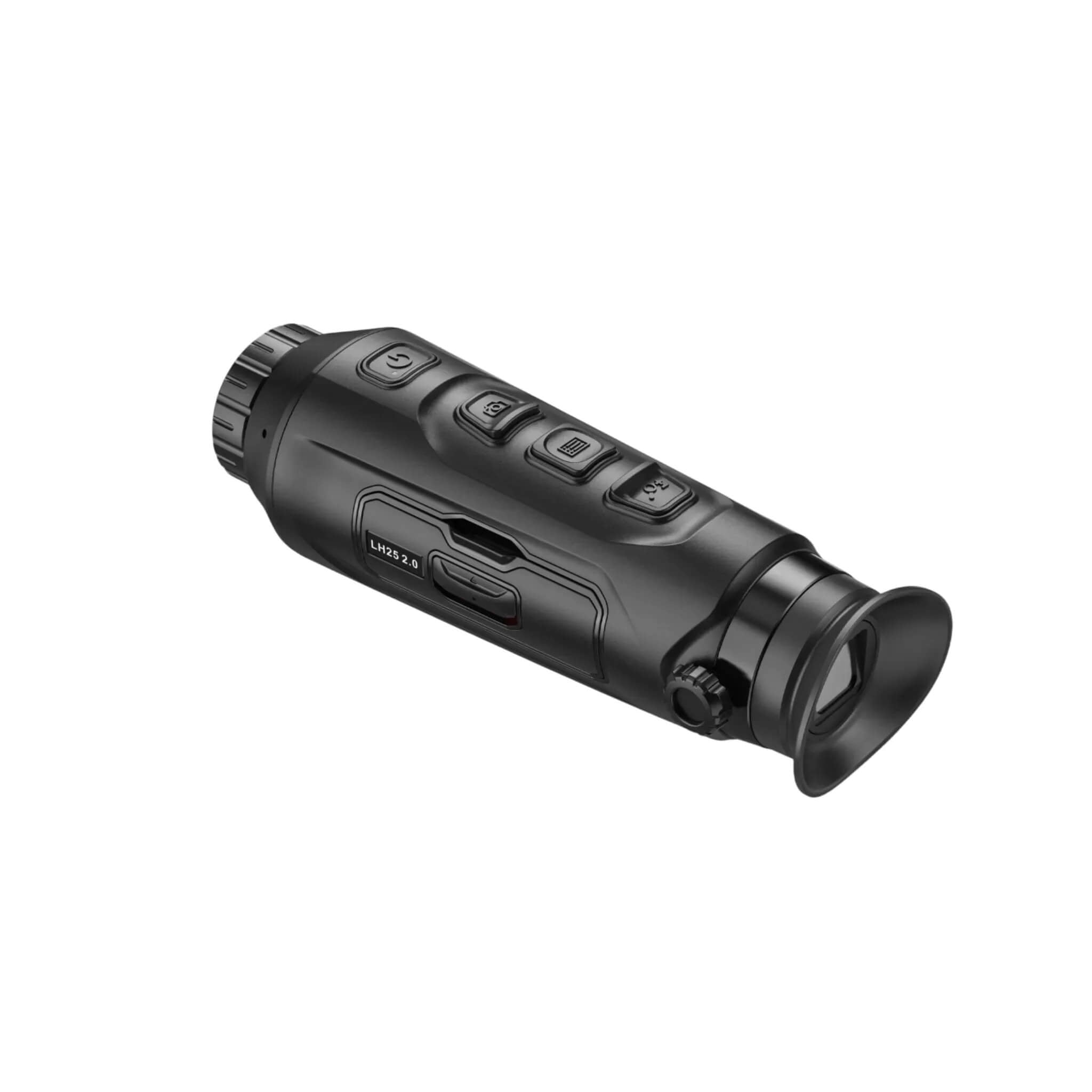

HIKMICRO Lynx 2.0 LH25 25mm 384x288 12mic 20mK Thermal Monocular

Only 1 left
SKU: LH25 2.0
$1,813.53
Colour

Product details

  • Type Thermal/ Night Vision
  • Vendor Hikmicro
  • SKU LH25 2.0
  • Barcode 6974004640224
Description

Equipped with a powerful 25 millimeter lens and an advanced 384 sensor with 12 micrometer pixel pitch, HIKMCRO LYNX LH25 2.0 captures highly detailed images at short and medium distances, especially with a high thermal sensitivity of NETD < 20 mK. With its exceptional capabilities, it effectively detects games at distances of up to 1200 meters.

Key Features

  • High sensitivity Thermal Module NETD < 20 mK (@25°C, F# = 1.0)
  • 384 × 288 Resolution with 12μm detector
  • 1024 × 768 Resolution 0.39-inch OLED display
  • Replaceable and rechargeable Li-ion battery
  • 275 g lightweight, with a compact and ergonomic design
  • Up to 6.5 hours of continuous operation

Specification Thermal Module

  • Image Sensor: VOx Uncooled Focal Plane Arrays
  • Max. Resolution: 384 × 288
  • Frame Rate: 50 Hz
  • Pixel Interval: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • NETD: Less than 20 mK (@25°C), F# = 1.0
  • Lens (Focal Length): 25 mm, f1.0
  • Focus Mode: Focus Ring
  • Detection Range: 1200 m
  • Min. Focusing Distance: 2.5 m
  • Magnification: 2.4x to 19.2x (8x)
  • Field of View(H × V), Degrees/ m @100m: 10.5° × 7.9°/ 18.4 m×13.8 m

Image Display

  • Display: 1024 × 768, 0.39 inch, OLED
  • Palettes: Black Hot, White Hot, Red Hot, Fusion
  • FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
  • Exit Pupil: 6 mm
  • Eye Relief: 20 mm
  • Diopter (Range): -5 D to +3 D
  • Brightness Adjustment: Yes
  • Tone Adjustment Cold, Warm
  • Contrast Adjustment: Yes

System

  • Record Video: Yes
  • Capture Snapshot: Yes
  • Audio Recording: Yes
  • Standby Mode: Yes
  • Storage: Built-in EMMC (16 GB)
  • PIP: Yes
  • Hotspot: Yes
  • Hot Track: Yes
  • Distance Measurement: Yes

Power Supply

  • Battery Type: Replaceable and Rechargeable Li-ion Battery
  • Battery Operating: Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
  • Type-C Power Supply: 5VDC, 2 A
  • Supports External Power Supply

General

  • Protection Level: IP67
  • Dimension: 172.5 mm × 56.0 mm× 60.8 mm
  • Weight: 277 g without battery
  • Working Temperature: -30°C to +55°C
