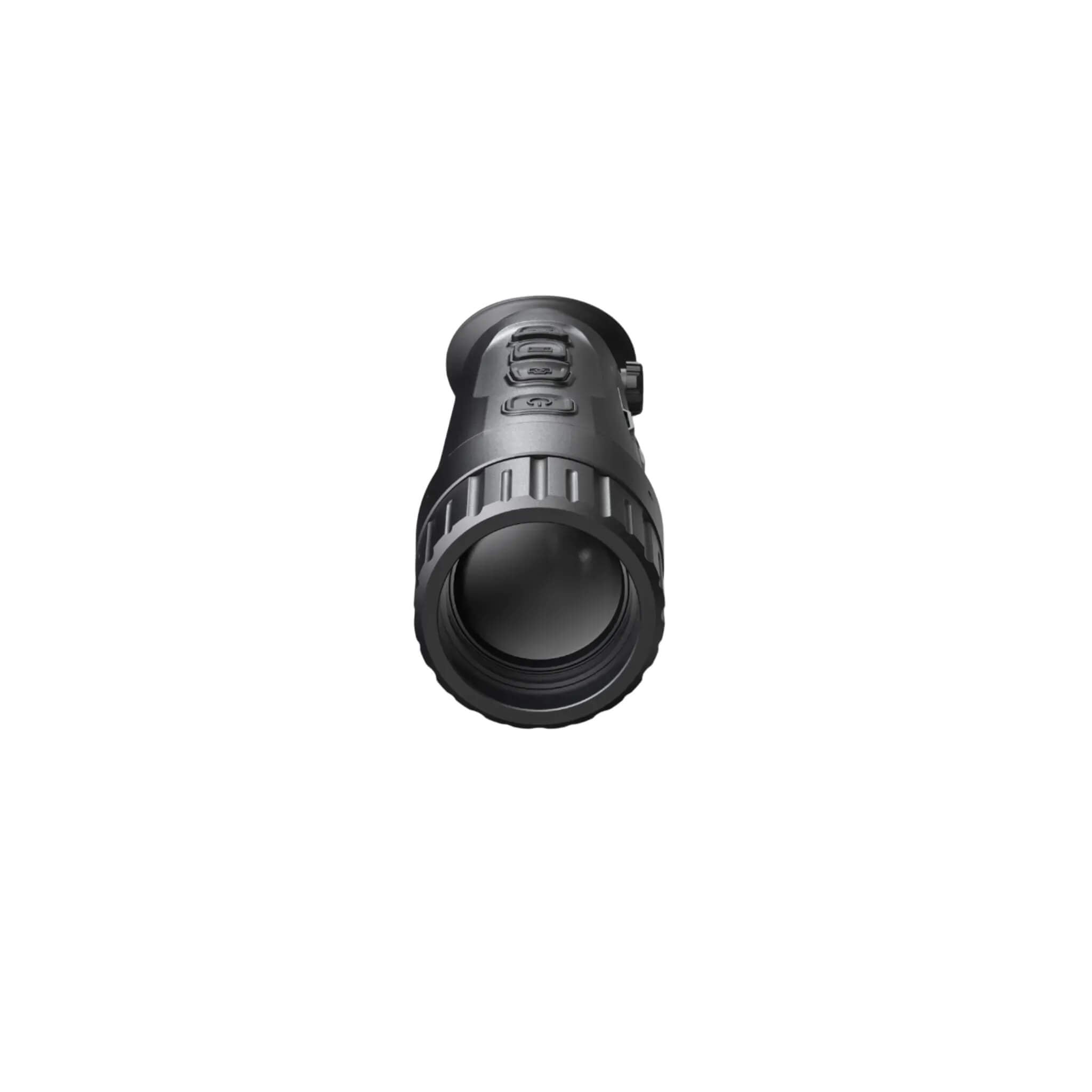

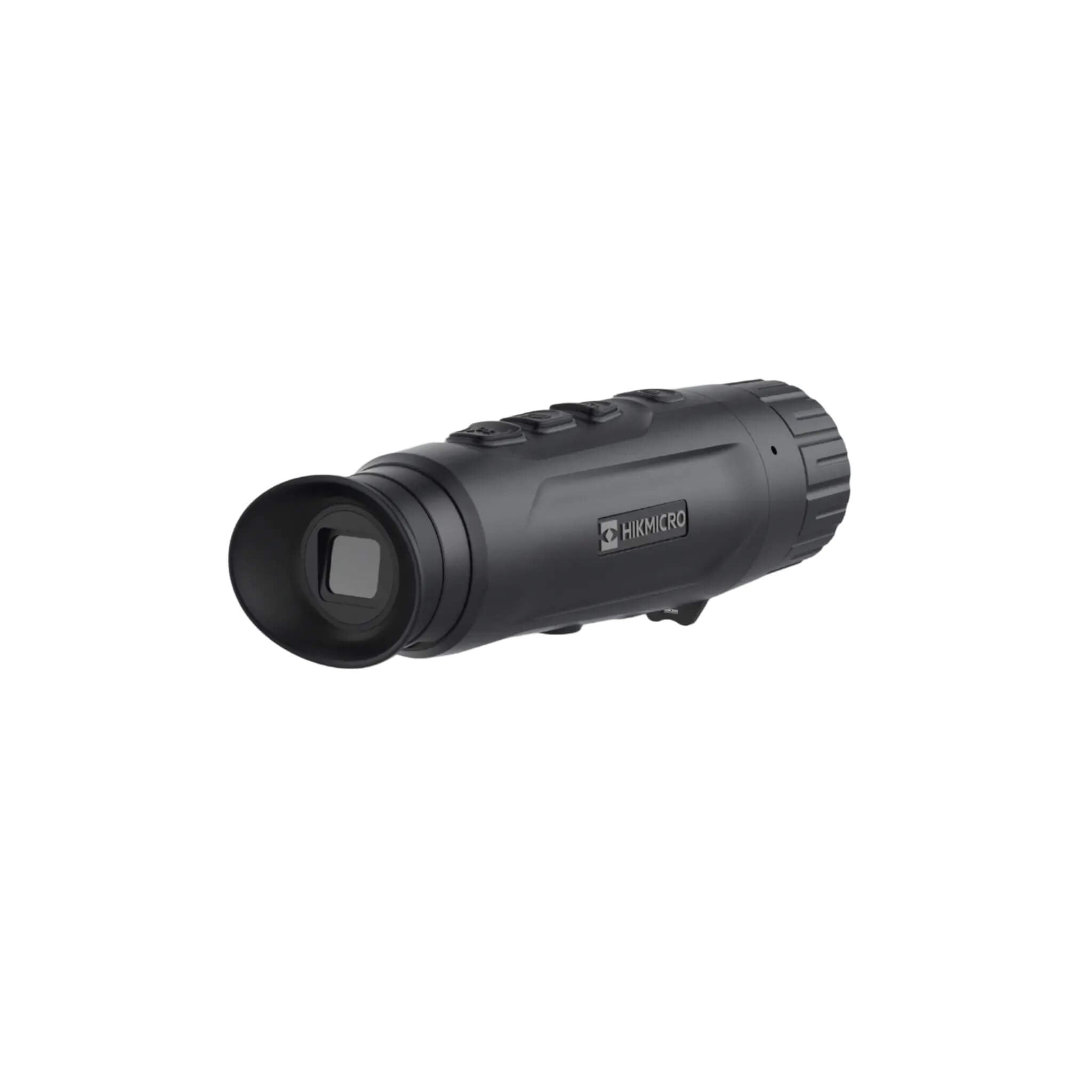

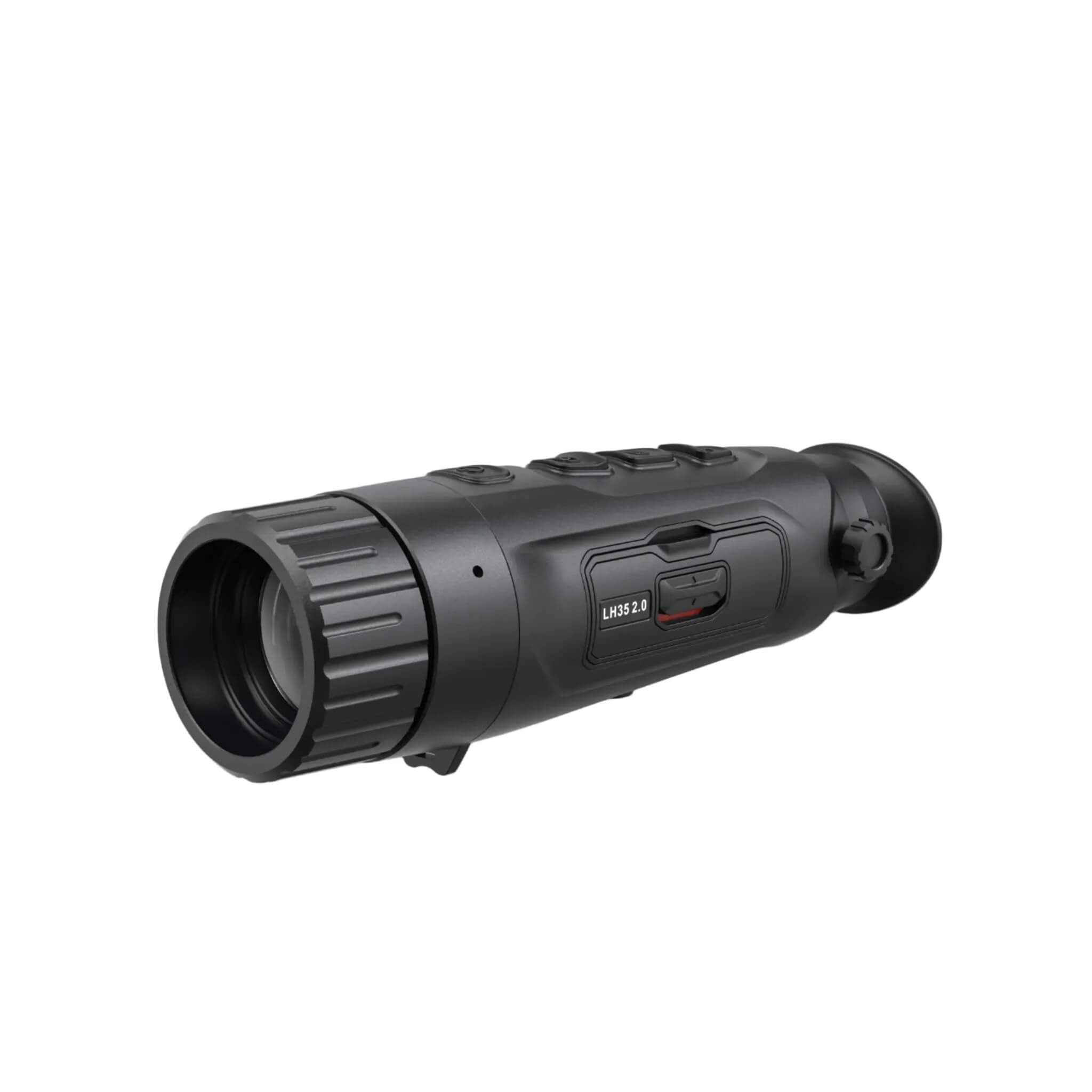

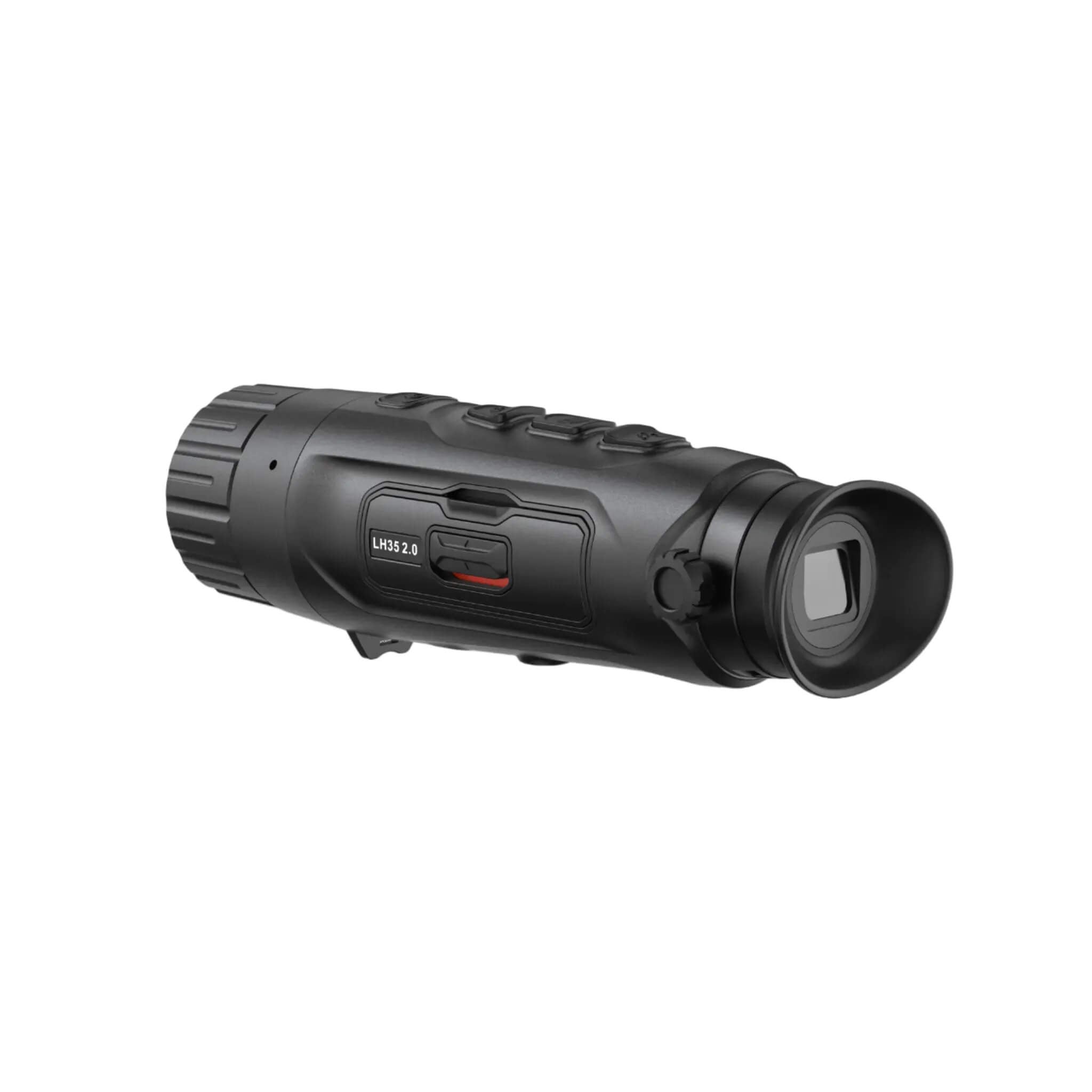

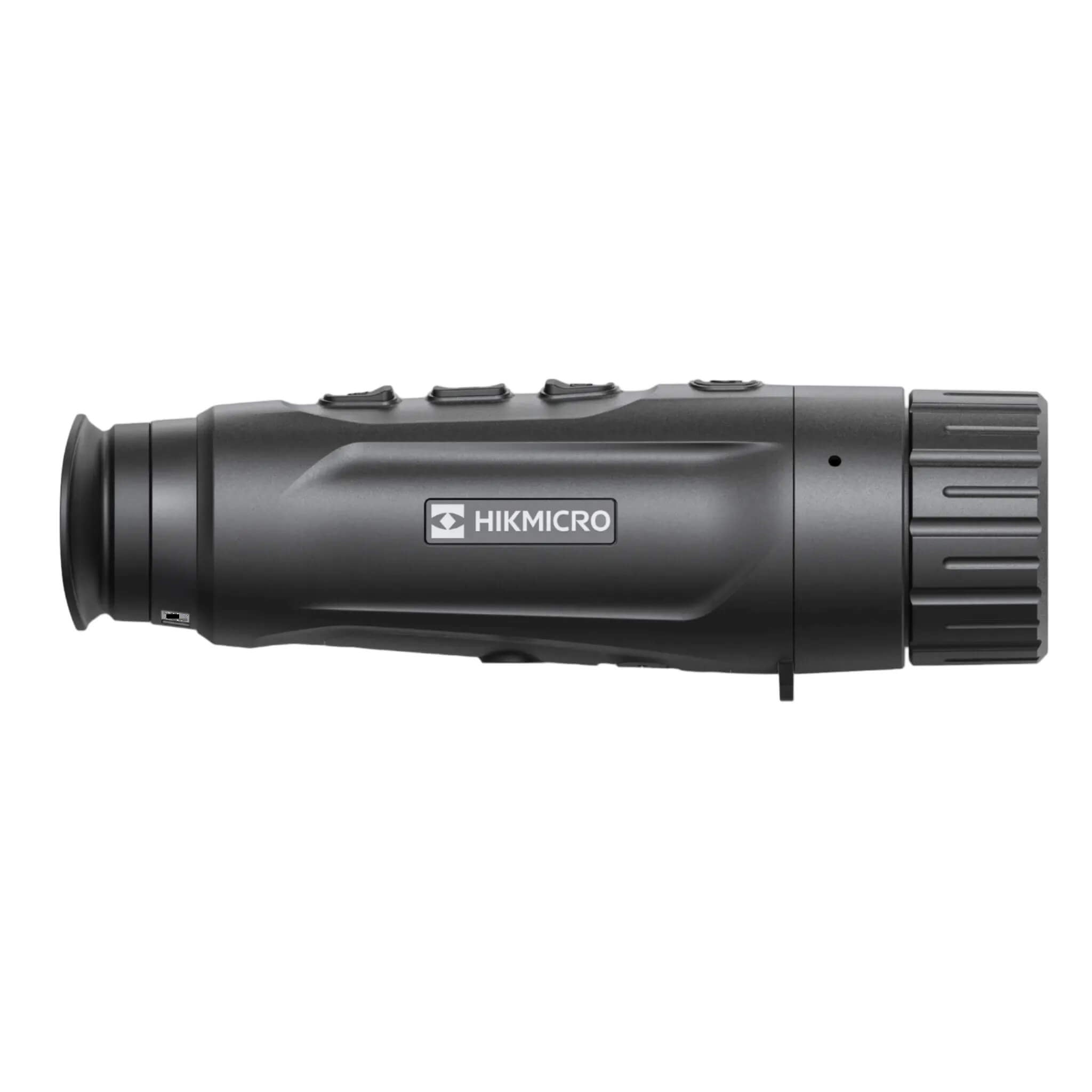

HIKMICRO Lynx 2.0 LH35 35mm 384x288 12mic 20mK Thermal Monocular

Only 1 left
SKU: LH35 2.0
$1,985.00
Colour

Product details

  • Type Thermal/ Night Vision
  • Vendor Hikmicro
  • SKU LH35 2.0
  • Barcode 6974004646813
Description

"Featuring the 3.3x base magnification and a field of view 13 meters @100 meters, the LH35 2.0 is equipped with 384 sensors, a 12-micrometer pixel pitch, and 20 mK high thermal sensitivity detectors. It is designed to elevate the excitement of every hunter, whether in the forest or field, with a remarkable detection range, reaching up to 1800 meters.

Key Features

  • High sensitivity Thermal Module NETD < 20 mK (@25°C, F# = 1.0)
  • 384 × 288 Resolution with 12 μm detector
  • 1024 × 768 Resolution 0.39-inch OLED display
  • Replaceable and rechargeable Li-ion battery
  • 338 g lightweight, with a compact and ergonomic design
  • Up to 6.5 hours of continuous operation

Specification Thermal Module

  • Image Sensor: VOx Uncooled Focal Plane Arrays
  • Max. Resolution: 384 × 288
  • Frame Rate: 50 Hz
  • Pixel Interval: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • NETD: Less than 20 mK (@25°C), F# = 1.0
  • Lens (Focal Length): 35 mm, f1.0
  • Focus Mode: Manual Focus
  • Detection Range: 1800 m
  • Min. Focusing Distance: 3.5 m
  • Magnification: 3.3 × to 26.4 × (8 ×)
  • Field of View(H × V), Degrees/ m @100 m: 7.5° × 5.7°/13.1 m × 10.0 m

Image Display

  • Display: 1024 × 768, 0.39 inch, OLED
  • Palettes: Black Hot, White Hot, Red Hot, Fusion
  • FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
  • Exit Pupil: 6 mm
  • Eye Relief: 20 mm
  • Diopter (Range): -5 D to +3 D
  • Brightness Adjustment: Yes
  • Tone Adjustment: Cold, Warm
  • Contrast Adjustment: Yes

System

  • Record Video: Yes
  • Capture Snapshot: Yes
  • Audio Recording: Yes
  • Standby Mode: Yes
  • Storage: Built-in EMMC (16 GB)
  • PIP: Yes
  • Hotspot: Yes
  • Hot Track: Yes
  • Distance Measurement: Yes

Power Supply

  • Battery Type: Replaceable and Rechargeable Li-ion Battery
  • Battery Operating: Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
  • Type-C Power Supply: 5 VDC, 2 A
  • Supports External Power Supply

General

  • Protection Level: IP67
  • Dimension: 193.0 mm × 56.0 mm × 62.0 mm
  • Weight: 338 g without battery
  • Working Temperature: -30°C to +55°C"
