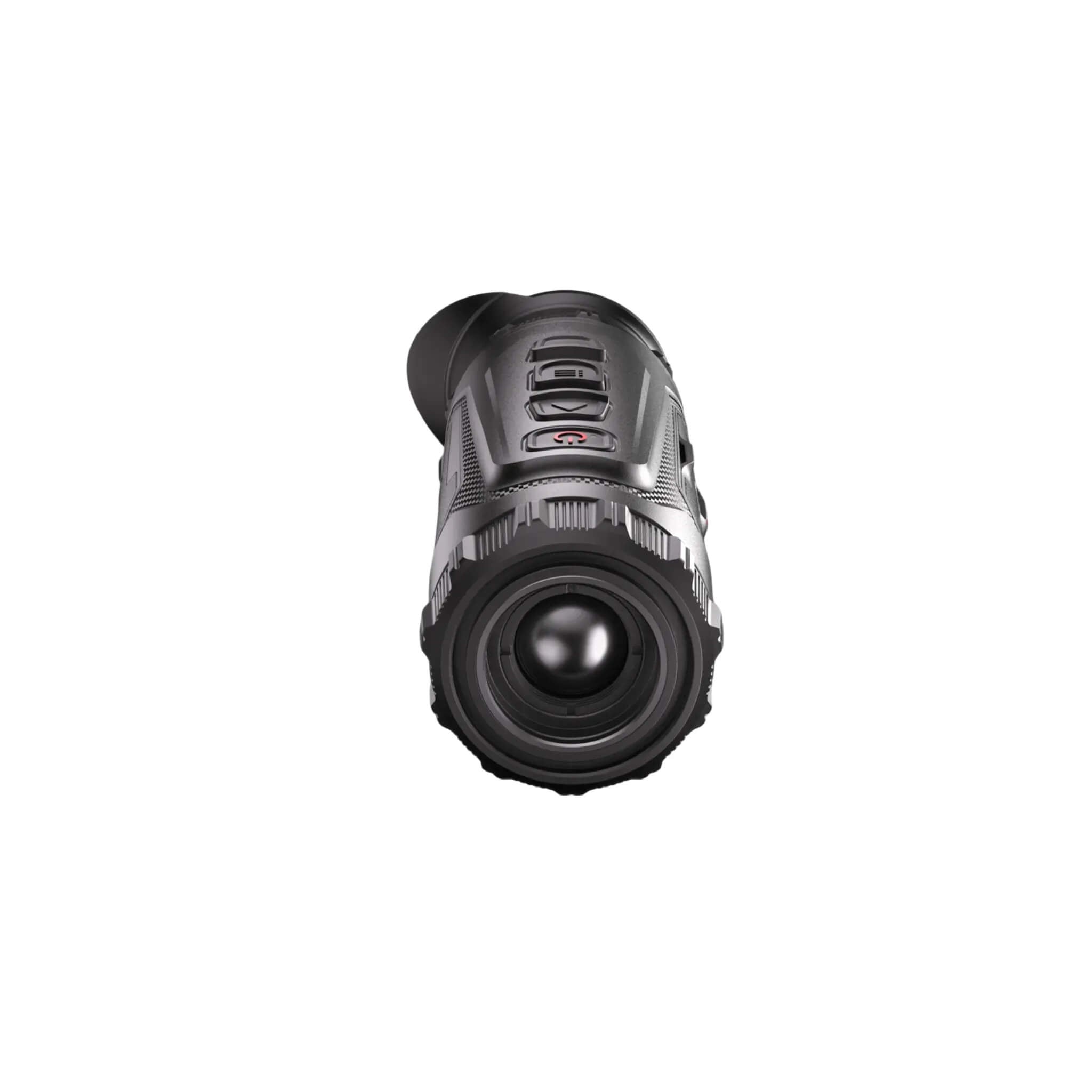

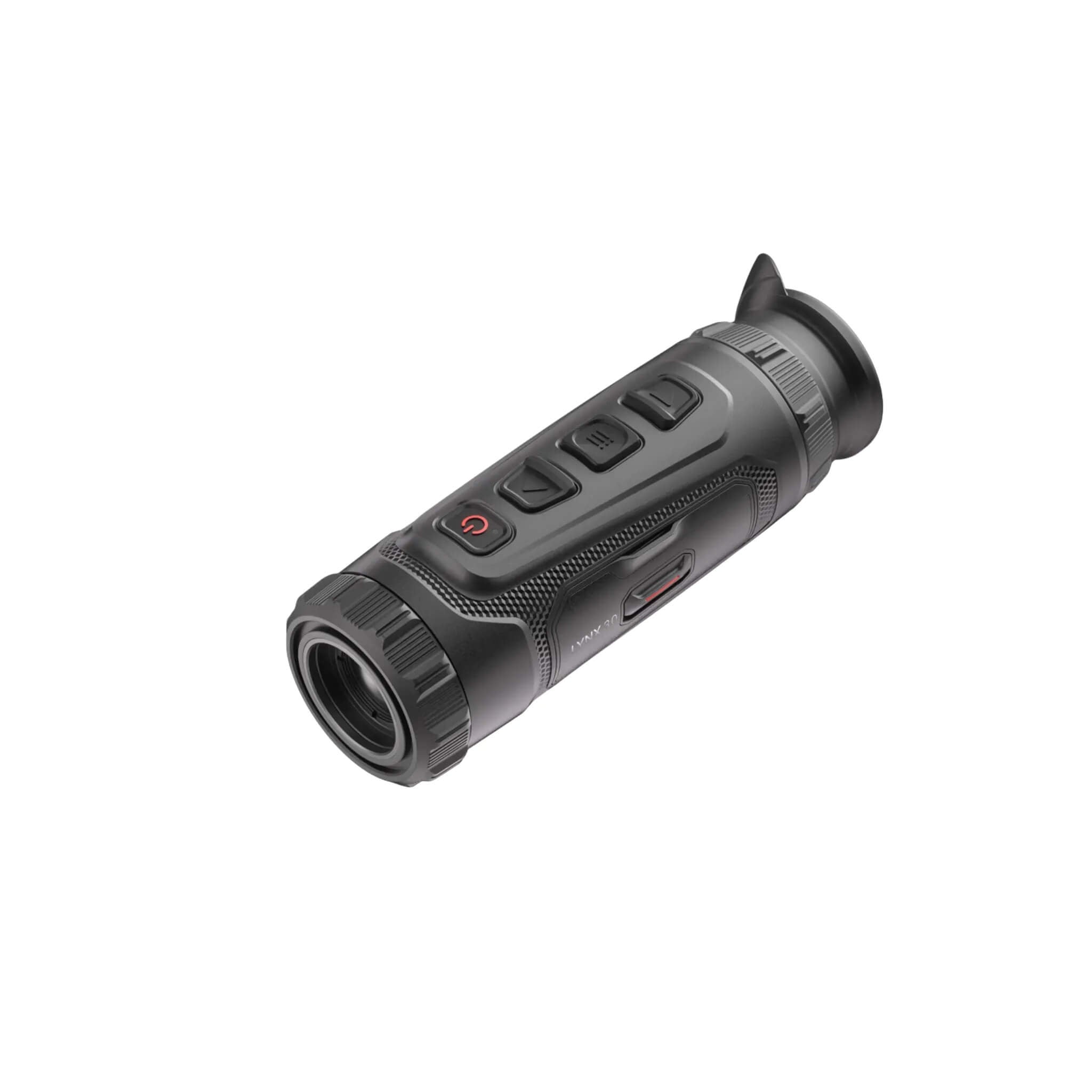

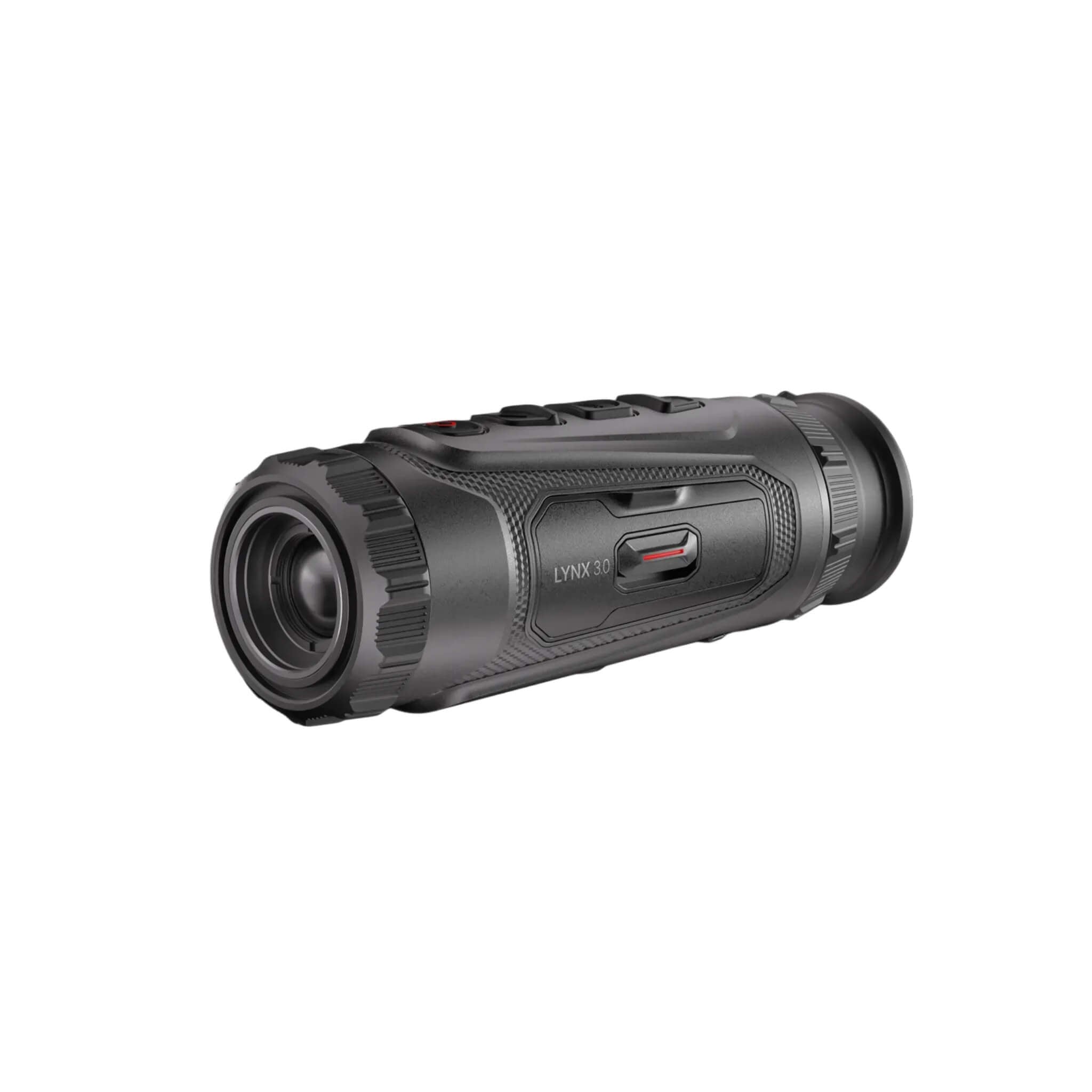

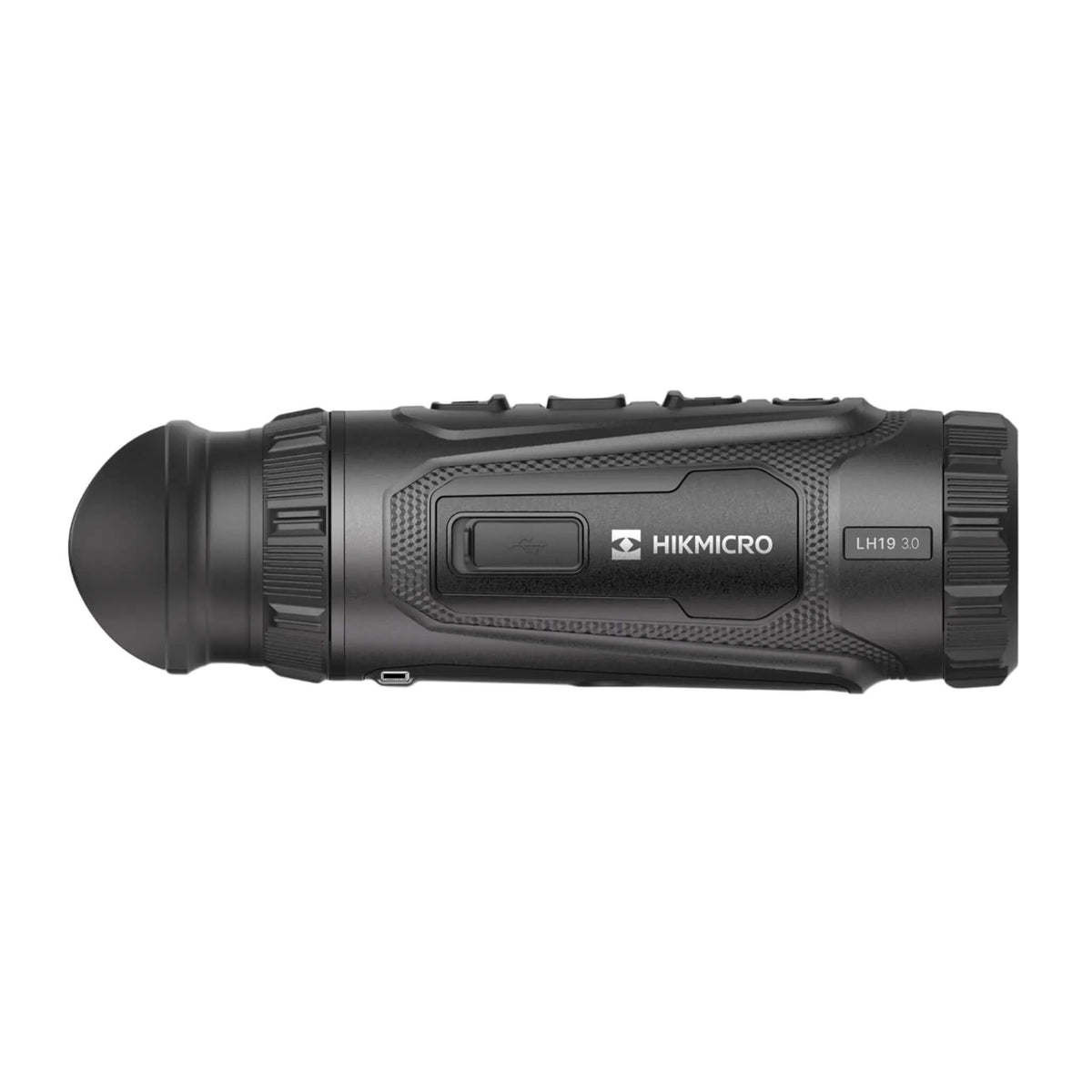

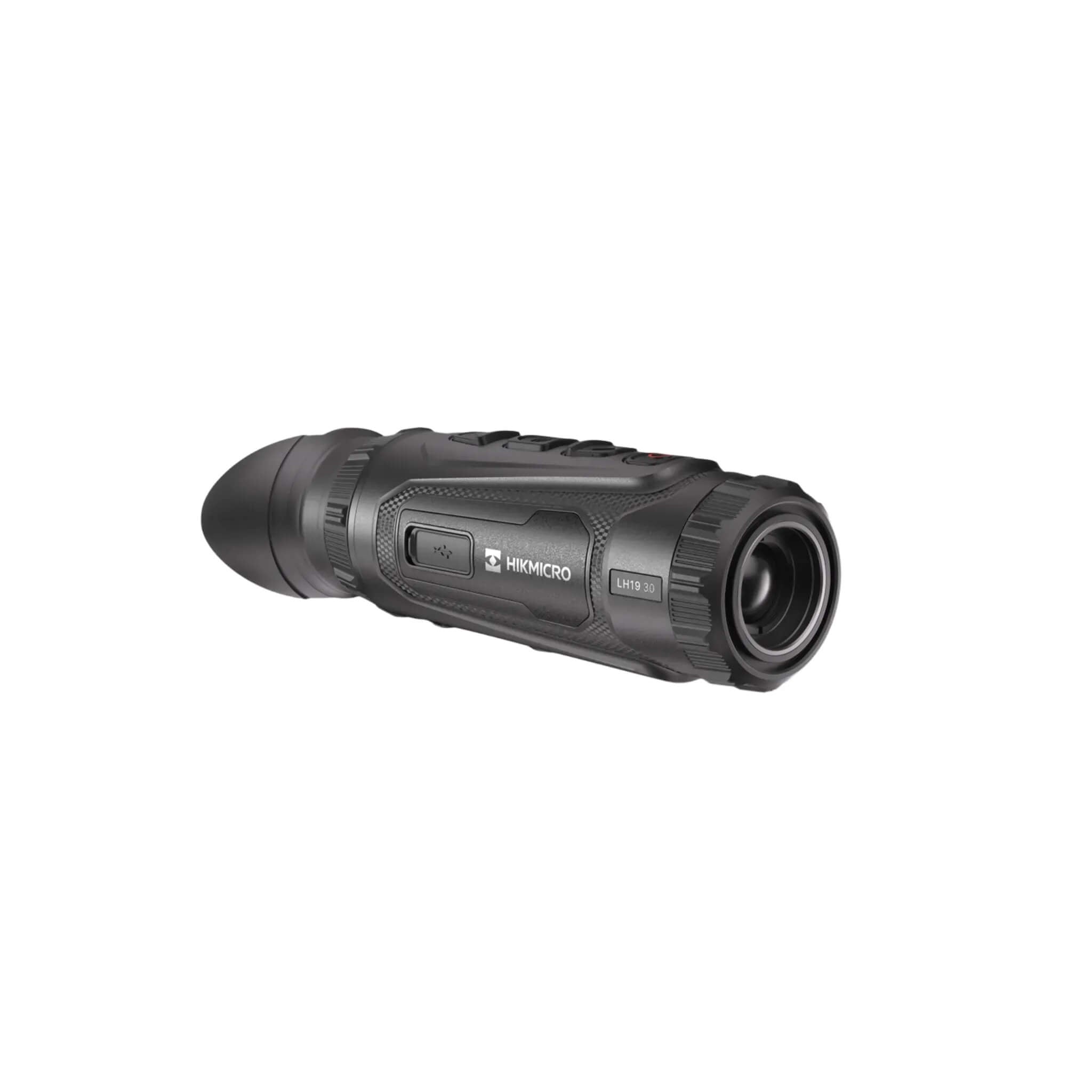

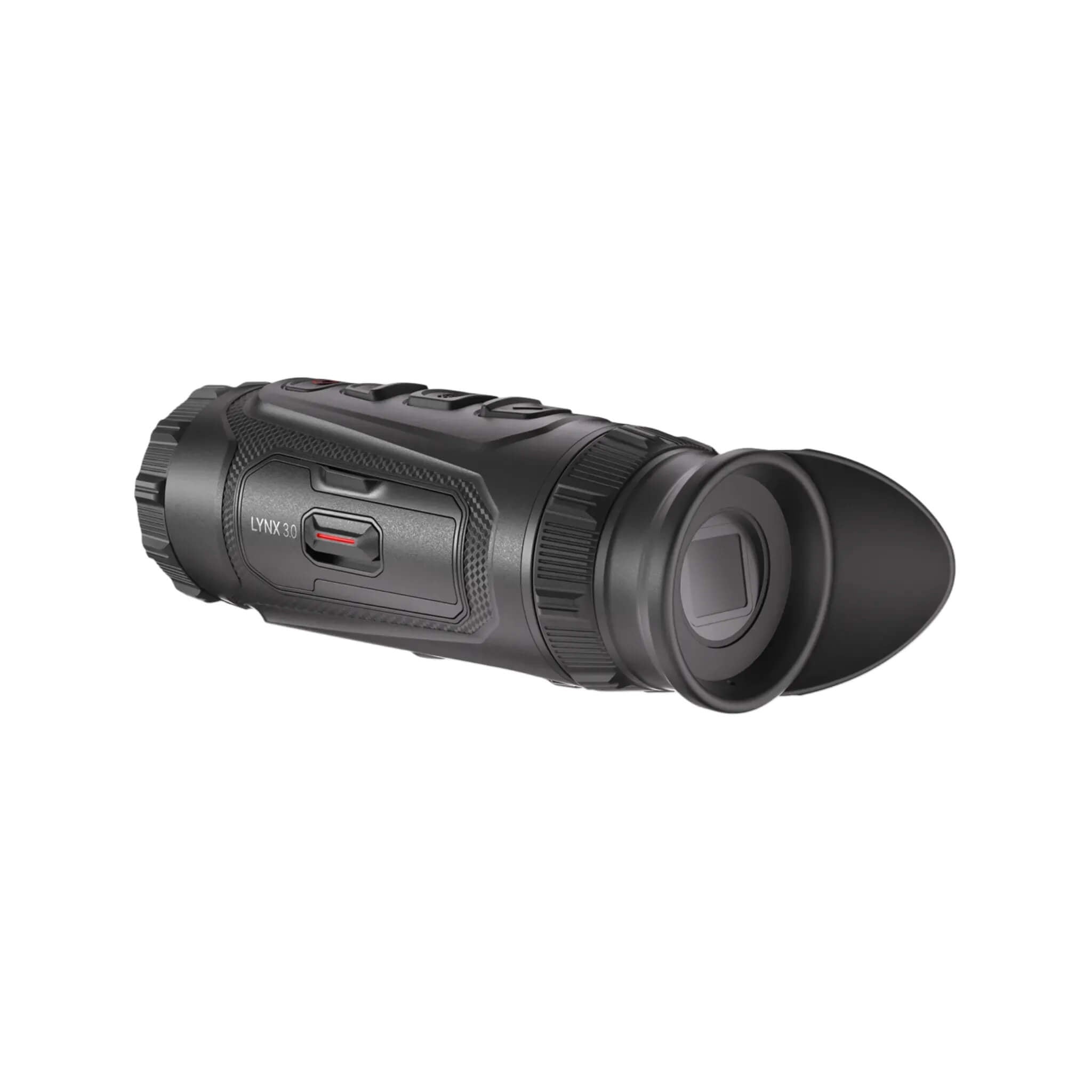

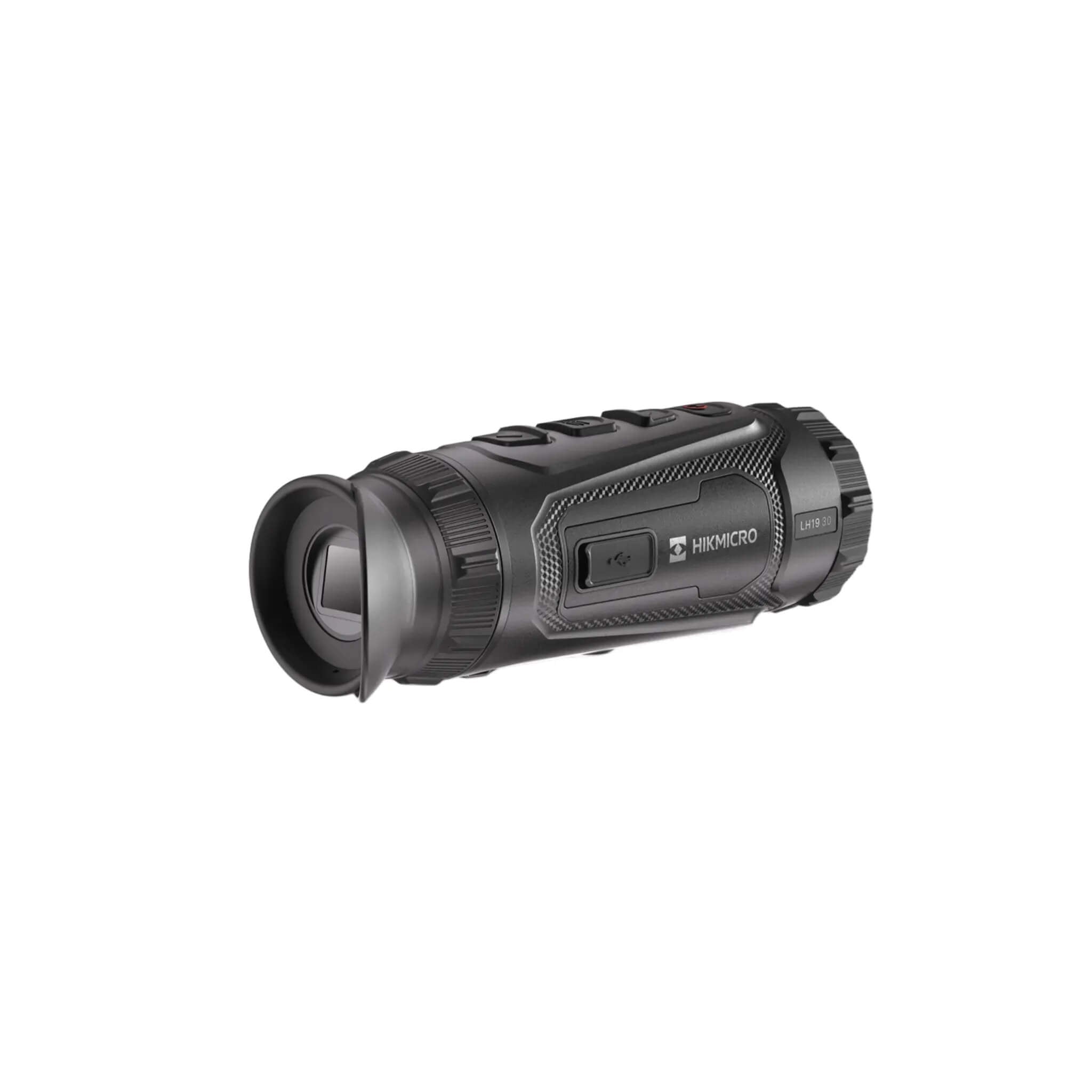

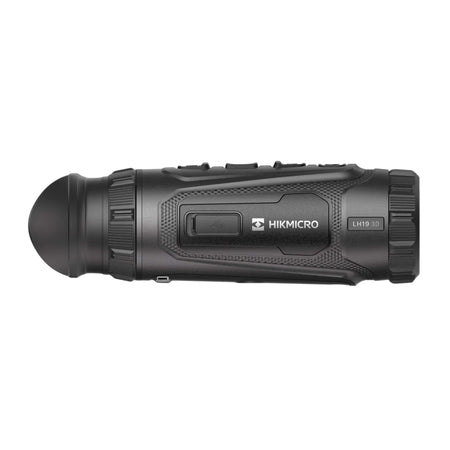

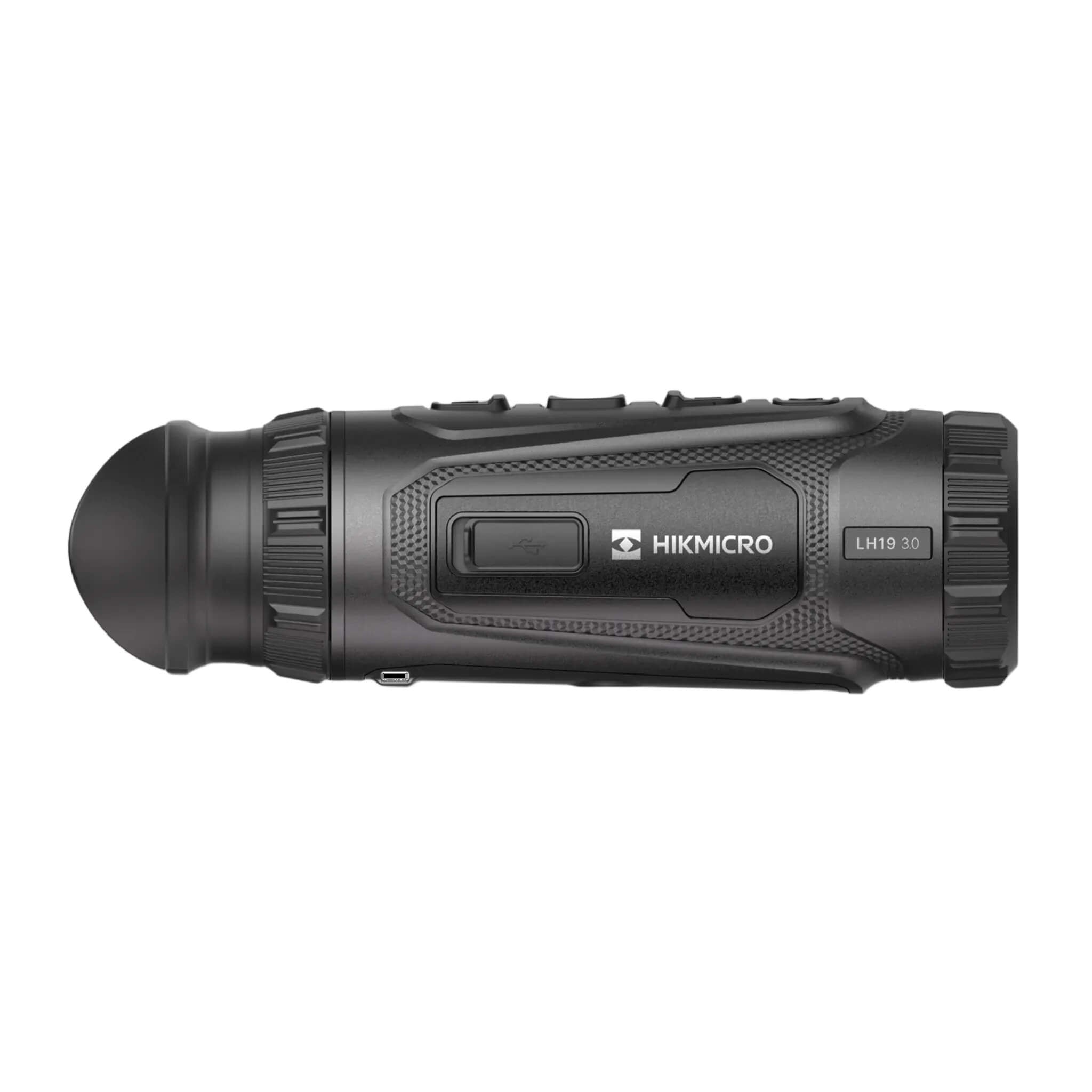

Hikmicro Lynx 3.0 LH19 19mm 384x288 12mic <15mK Thermal Monocular

With its 1.9× base magnification, 384×288 detector, and a 19mm F1.0 lens, the LH19 3.0 offers a versatile solution for demanding scenarios. It delivers a 13.8° (24.2m at 100m) wide field of view and a detection range of up to 900m, making it ideal for hunters and outdoor explorers who need a compact yet powerful device with shutterless imaging technology.

Key Features:

• High-sensitivity thermal module with NETD > 15 mK (@25°C, F# = 1.0).
• 19mm, F1.0 lens with thermal detection range up to 900m
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Imaging System (HSIS)
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 331g, with a pocket-sized build

Specification

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 384×288 * Frame Rate: 50Hz
• Pixel Interval: 12μm * Response Waveband: 8μm to 14μm
• NETD: Less than 15 mK (@25°C),F#=1.0
• Lens (Focal Length): 19mm, f1.0 * Focus Mode: Focus Ring
• Detection Range: 900m
• Min. Focusing Distance: 3m
• Magnification : 1.9× - 15.2× (8×)
• Field of View(H × V), Degrees / m @100m: 13.8°×8.4°/24.2m ×14.7m

Image Display

• Display: 1920×1080, 0.49 inch, AMOLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes
• Sync Pro: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Built-in Memory: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: 2.4 GHz/5 GHz Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
• Battery Operating Time: 5-hour continuous running with hotspot on (@25°C), 4.5-hour continuous running with hotspot on (@-20°C)
• Type-C Power Supply: 5V DC, 2A, Supports External Power Supply, Support Direct Charging

General

• Protection Level: IP67
• Dimension: 158.4 × 53.6 × 49.5mm * Weight: 331g with battery
• Working Temperature: From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
