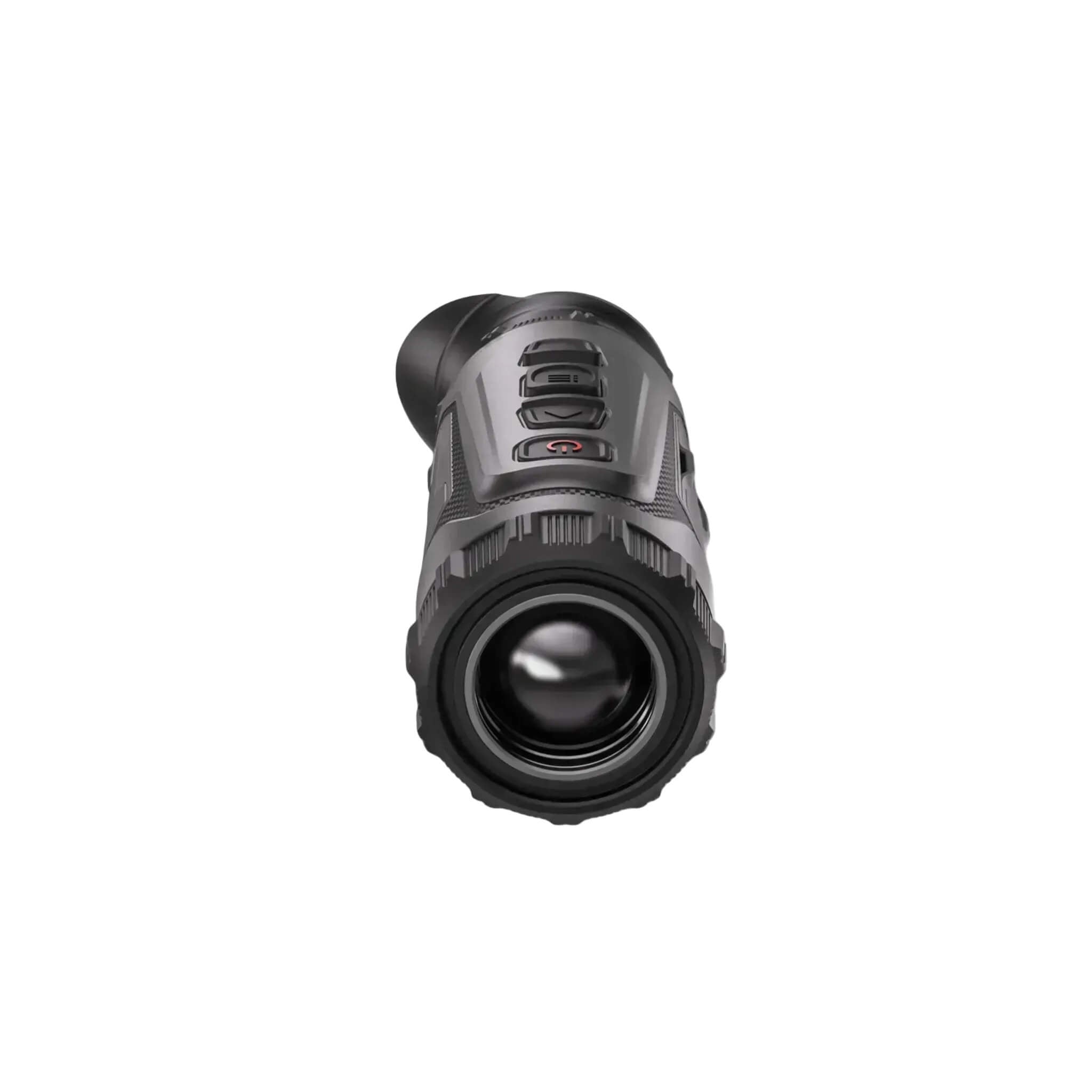

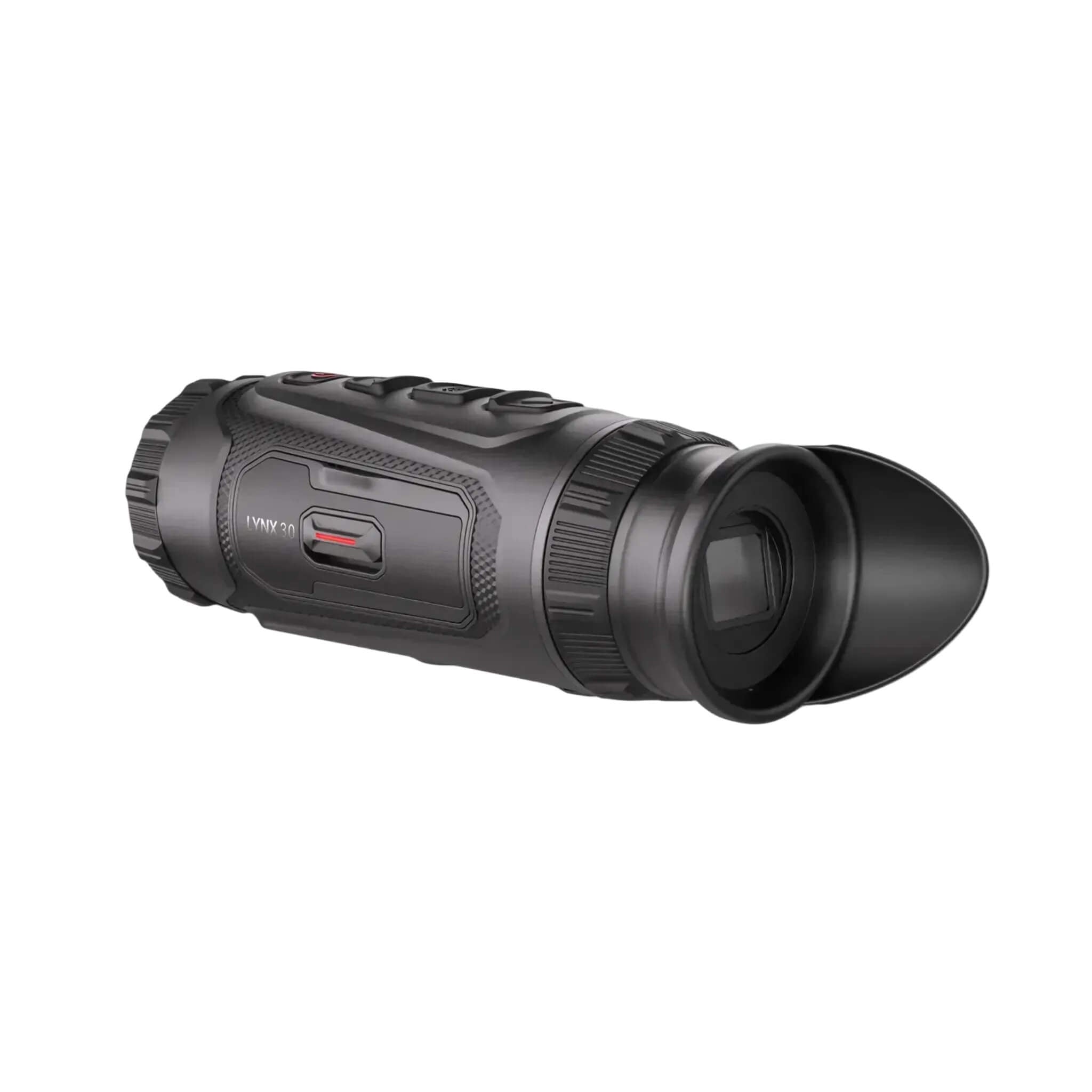

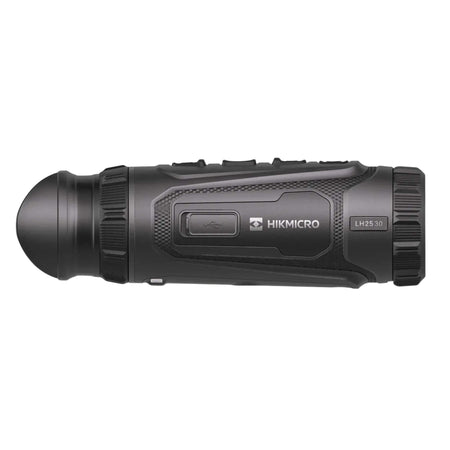

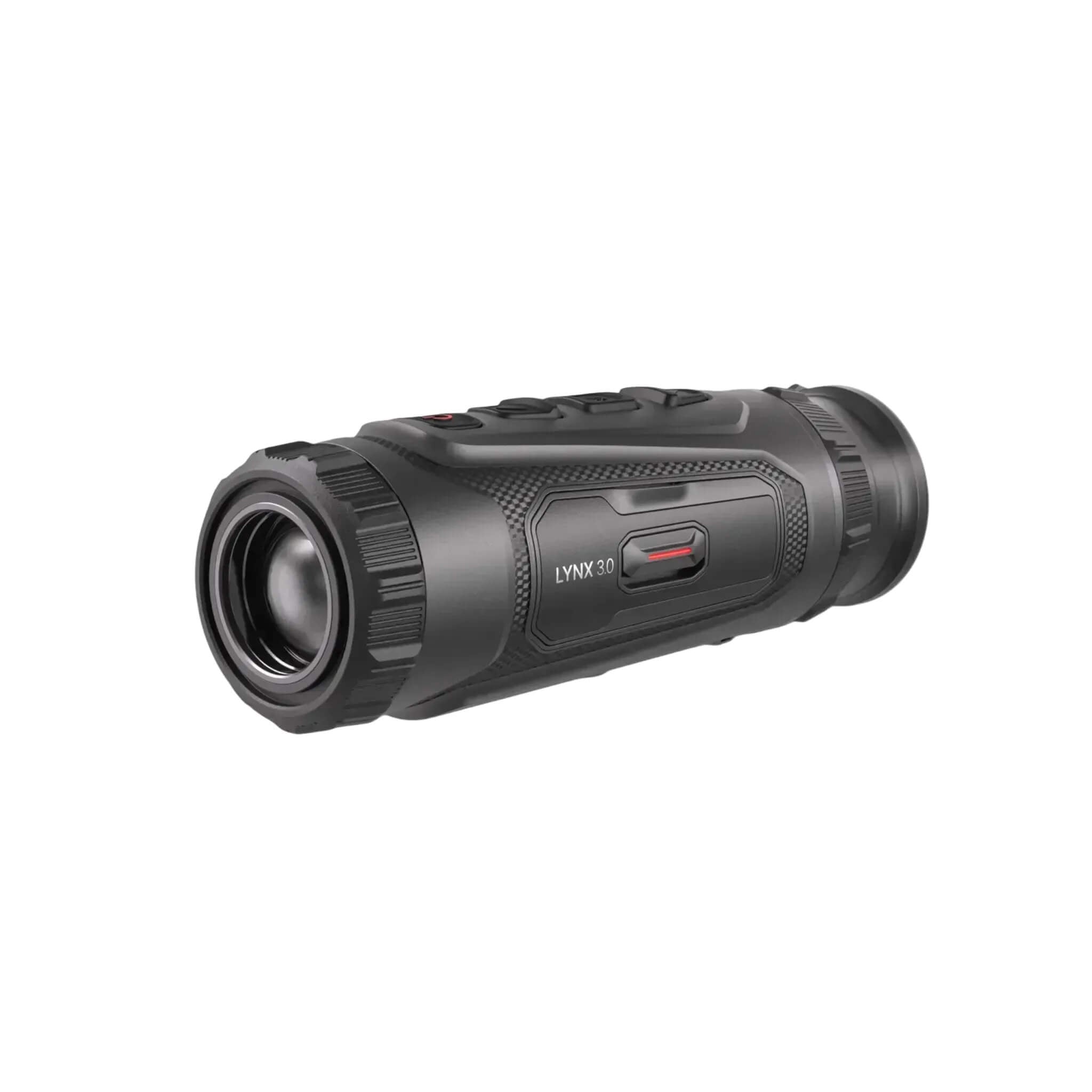

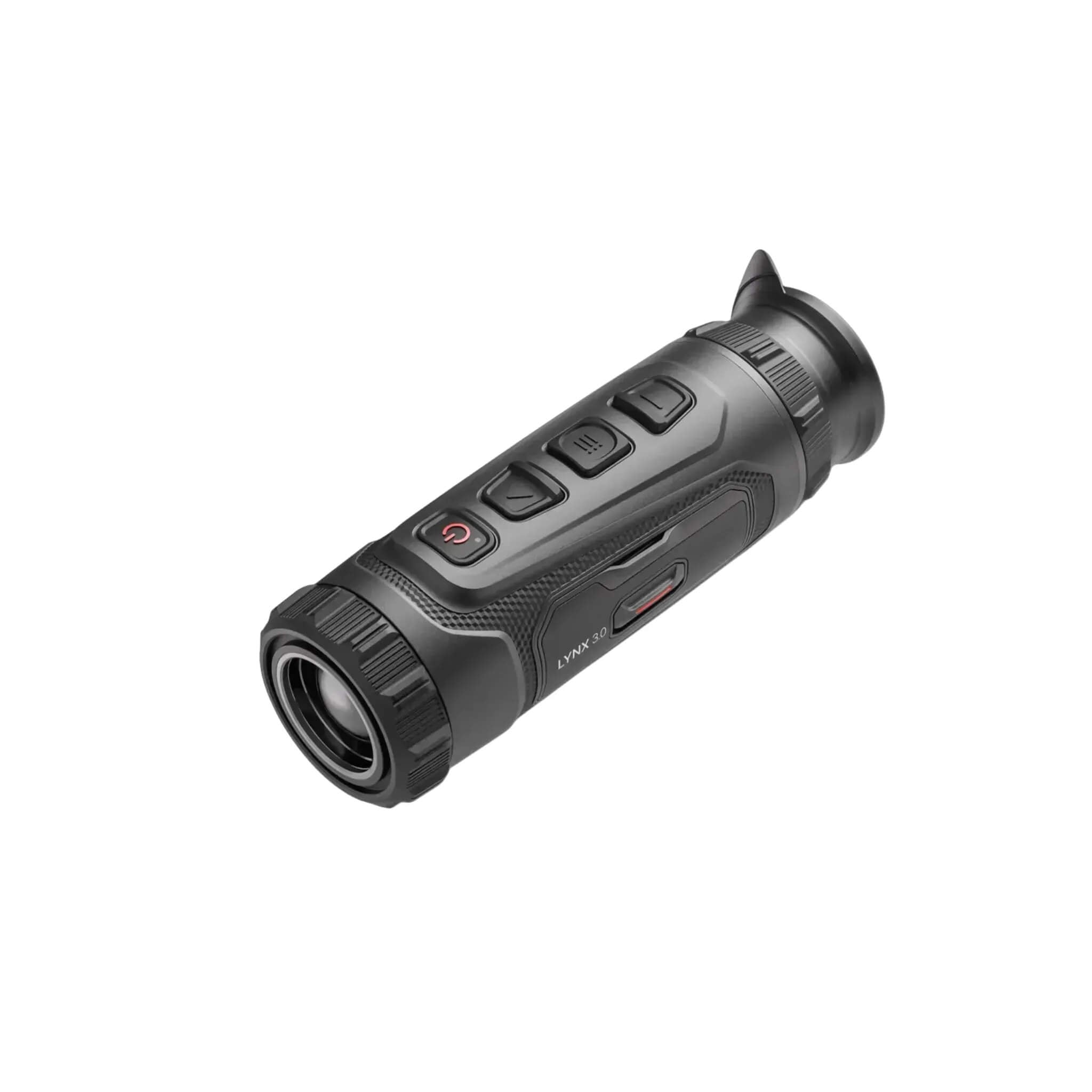

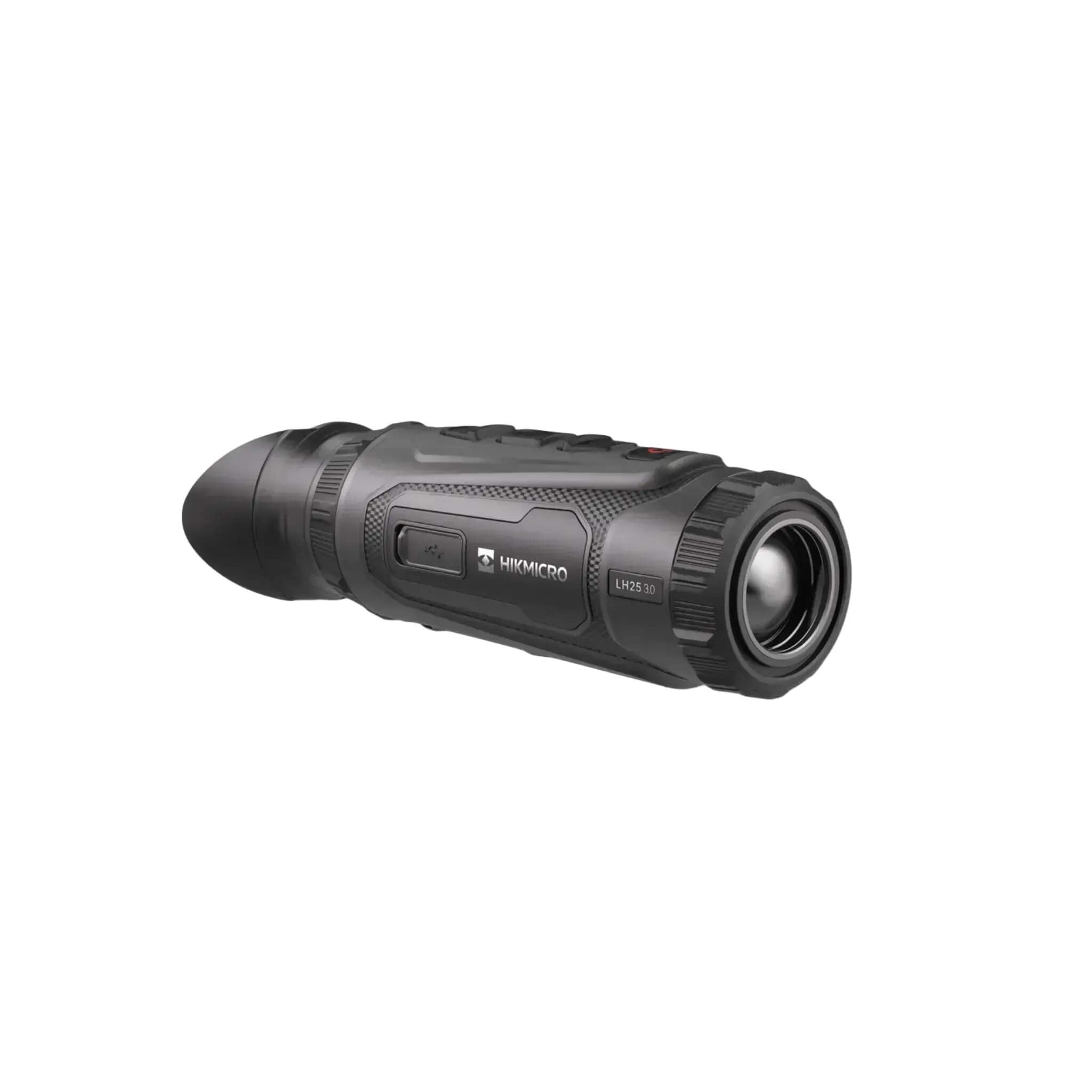

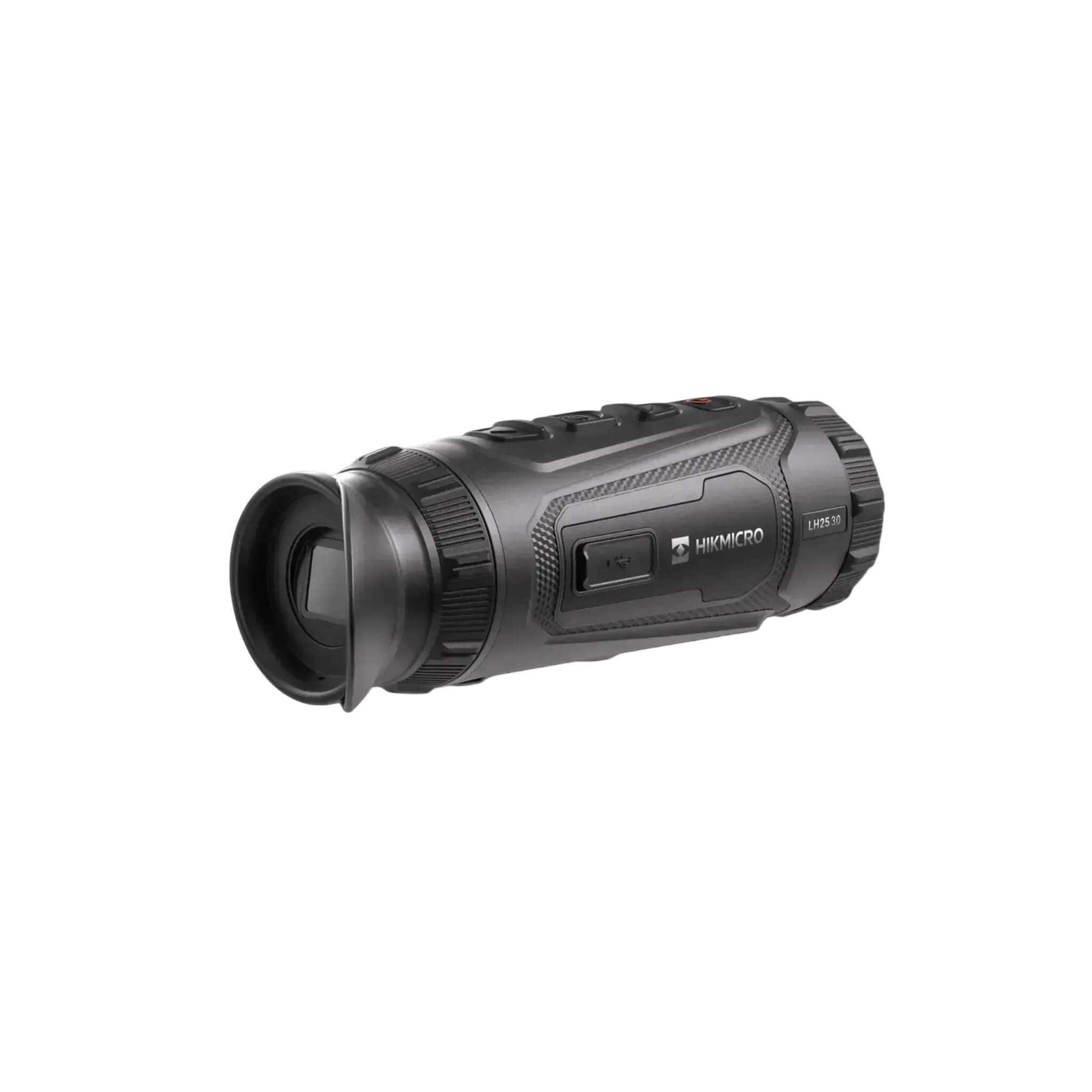

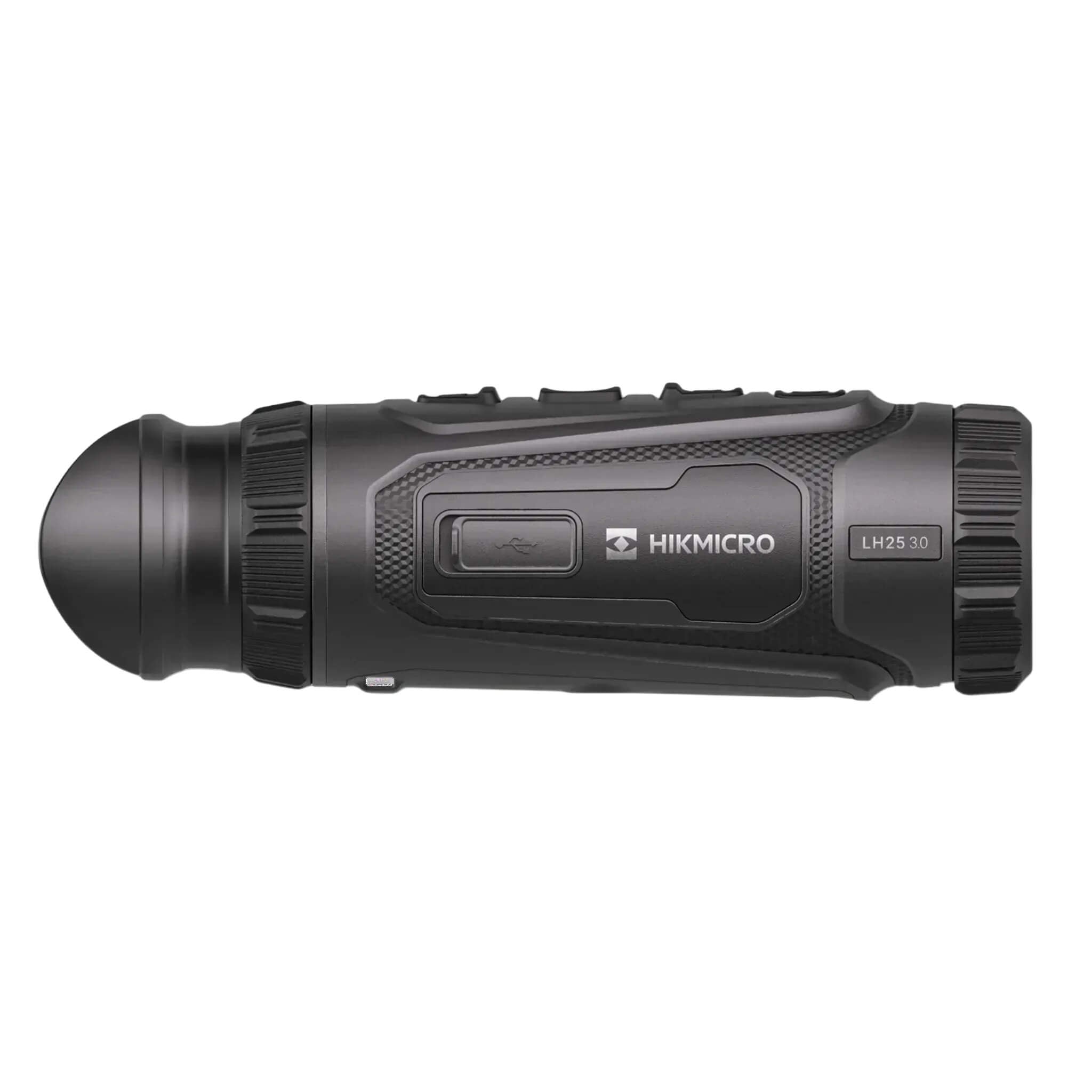

Hikmicro Lynx 3.0 LH25 25mm 384x288 12mic <15mK Thermal Monocular

The LH25 3.0 redefines performance in its class with a 384×288 detector, a 25mm F1.0 lens, and a 2.5× base magnification. With its 10.5° (18.4m at 100m) field of view and an impressive detection range of 1200m, this ultimate-valued monocular excels in long-range detection. It is perfect for open landscapes and professional use.

Key Features:

• High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
• 25mm, F1.0 lens with thermal detection range up to 1200m
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Imaging System (HSIS)
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 328.5g, with a pocket-sized build

Specification

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 384×288
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 15 mK (@25°C),F#=1.0
• Lens (Focal Length): 25mm, f1.0
• Focus Mode: Focus Ring
• Detection Range: 1200m
• Min. Focusing Distance: 3m
• Magnification: 2.5× - 20× (8×)
• Field of View (H × V), Degrees / m @100m: 10.5°×6.4°/18.4m×11.2m

Image Display

• Display: 1920×1080, 0.49 inch, AMOLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes
• Sync Pro: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Built-in Memory: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: 2.4 GHz/5 GHz Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
• Battery Operating Time: 5-hour continuous running with hotspot on (@25°C), 4.5-hour continuous running with hotspot on (@-20°C)
• Type-C Power Supply: 5V DC, 2A, Supports External Power Supply, Support Direct Charging

General

• Protection Level: IP67
• Dimension: 158.4 × 53.6 × 49.5mm
• Weight: 328.5g with battery
• Working Temperature: From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
