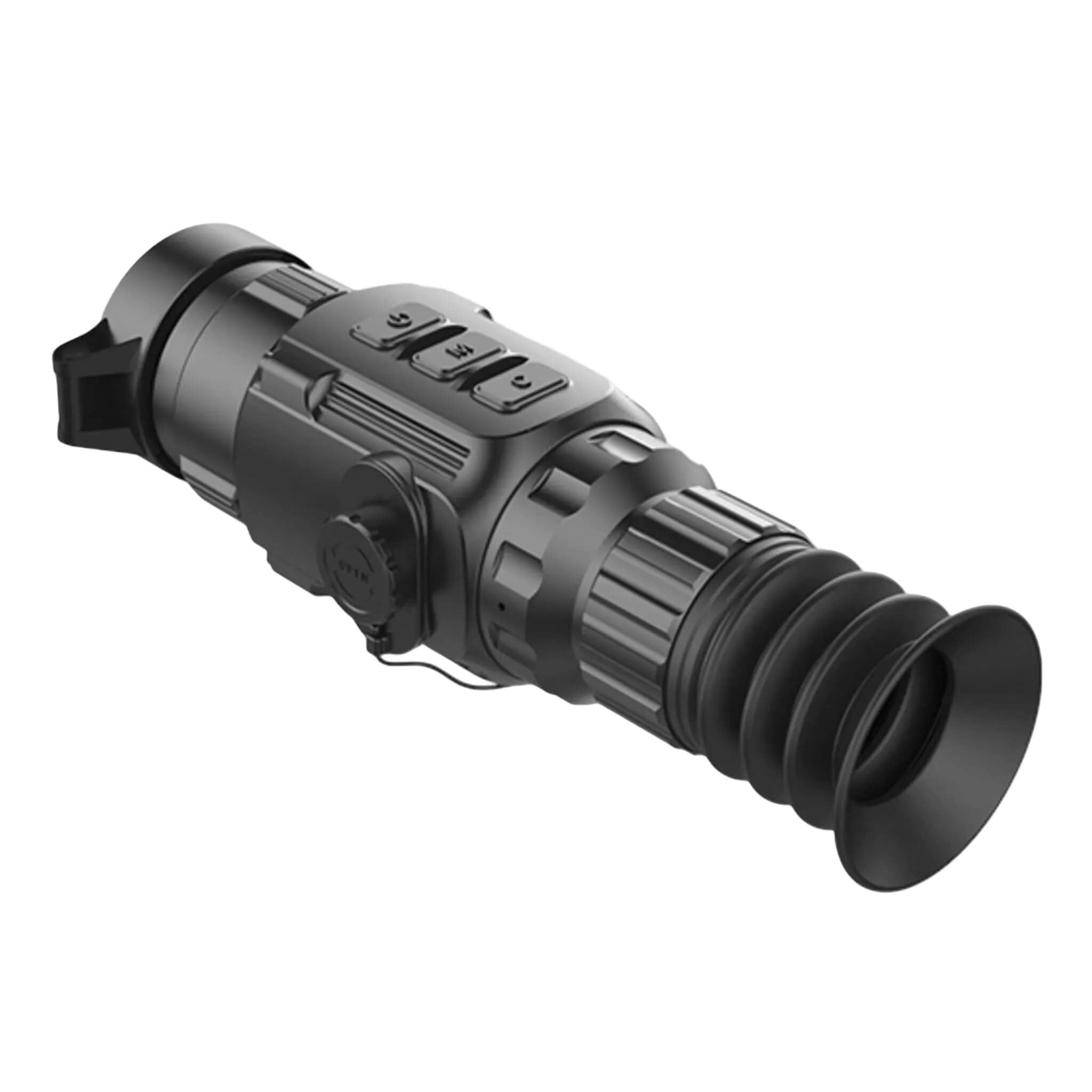

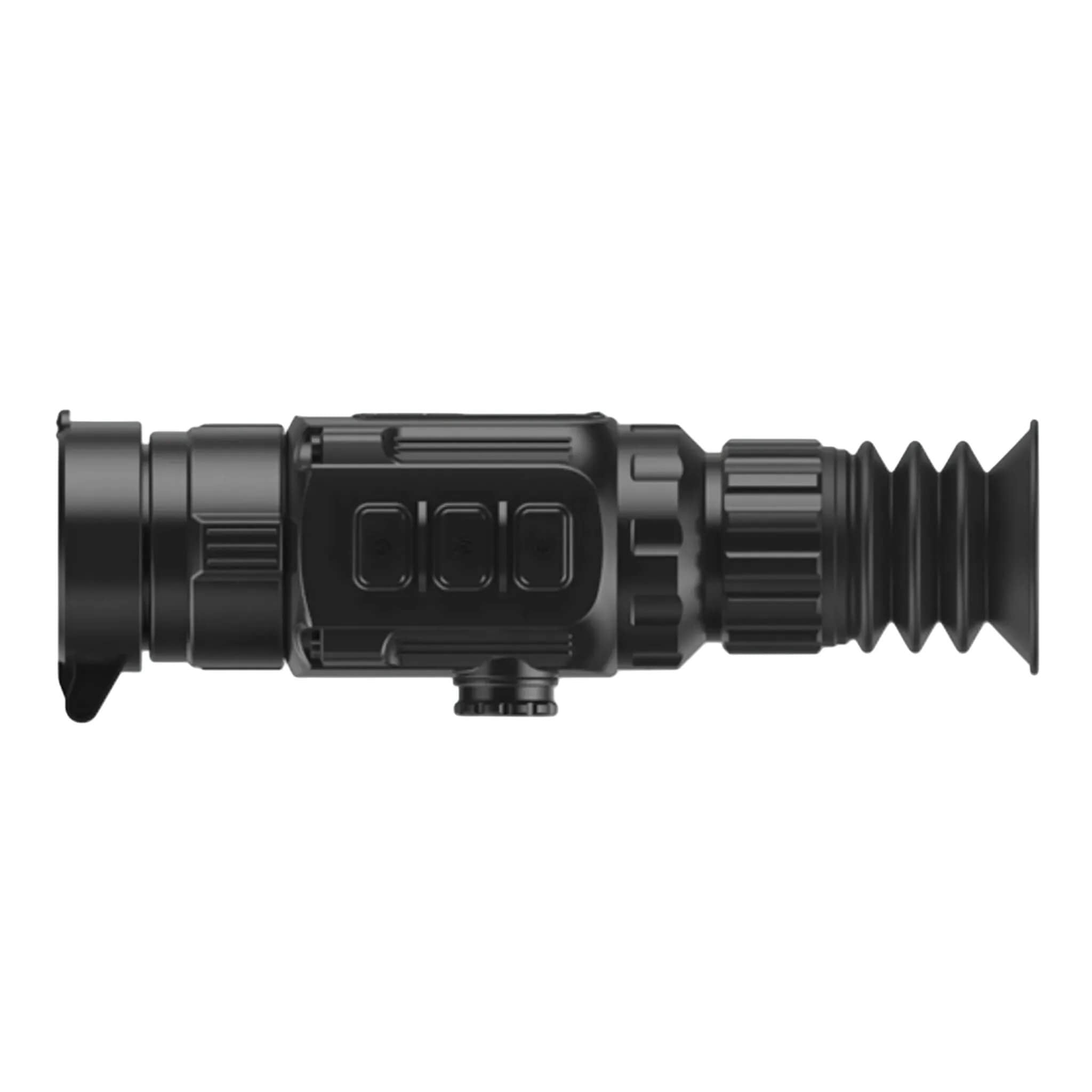

Night Tech Hunter Series MS-42R Thermal Mini Sight 384x288

Only 1 left
SKU: MS-42R
$2,999.99 inc. GST
$3,899.00 Sale $2,999.99 inc. GST

Product details

  • Type Thermal/ Night Vision
  • Vendor NightTech
  • SKU MS-42R
  • Barcode 794712293071
Description

Hunter Series: Thermal Mini-Sight

With XST Technology for superior image quality, Night Tech Mini-Sights have been developed with the hunter in mind

Night Tech customers wanted a high quality thermal mini-sight that was lightweight, simple to use, available at a competitive price and that didn’t have any needless complexities.

Introducing the Hunter Series: Mini-Sight from Night Tech. Incorporating the latest in thermal imaging developments – XST Technology, our latest sight means you can now detect objects at greater distances and identify them with better accuracy. Enjoy class-leading performance with images that are up to 3 times sharper and more sensitive than other thermal products on the market.

Features

  • One of the smallest and lightest thermal scopes on the market
  • Simple and easy to use with no fancy or complex options
  • High-resolution 1280×960 pixel HD display
  • XST Technology providing exceptional image quality and clarity
  • Thermal Detection ranges out to 2100 metres

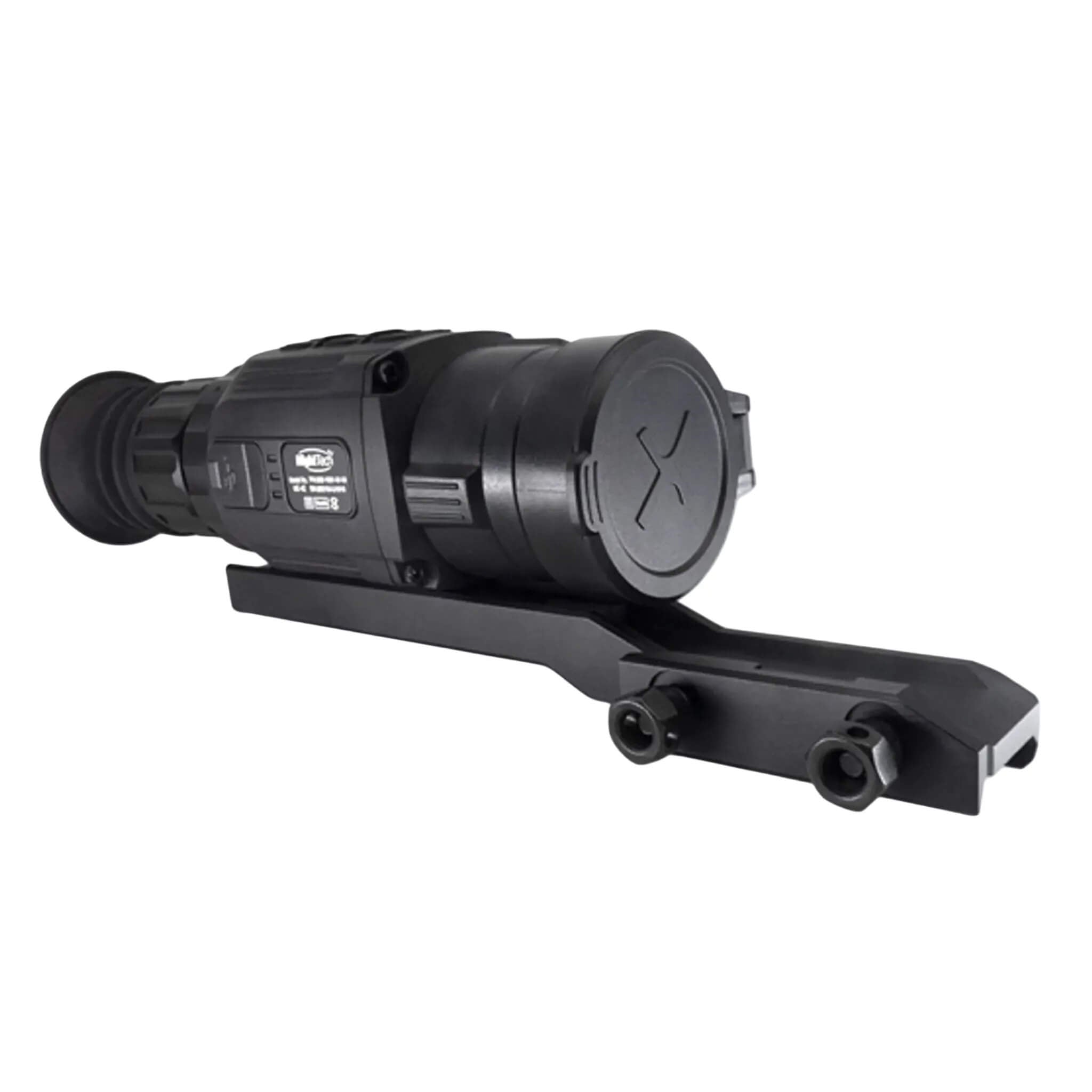

  • Easy to use on an Extended Eye Relief Picatinny Mount (included)
  • Recoil rated to 1000Gs
  • Rugged, reliable and built to last
  • Multiple thermal colour pallets including black, white, red hot and colour mode
  • Multiple zero settings for different setups
  • Bluetooth capability for future expansion
  • Built-in Accelerometer and Digital Compass for improved accuracy

Main

MS-42R

Thermal Sensor

384 x 288

Objective lens

F42 / 1.0

Magnification, x

3.0 - 12x

Field of view (HxV), degrees / m @ 100mtrs

7.5 x 5.7

Detection range, m

1800

  Sensor



Type

uncooled Vox

Resolution, pixels

384 x 288

Pixel Pitch

12um

NETD

<35mK

Frame rate, Hz

50

  Optics



Objective lens

F42/1.0

Magnification, x

3.0-12x

Field of view (HxV), degrees / m @ 100mtrs

7.5 x 5.7

  Display



Resolution, pixels

1024 x 768 OLED

Thermal Palettes

Black Hot, White Hot, Red Hot, Colour

  Range Performance



Detection range, m (Rabbit)

350

Detection range, m (Fox)

600

Detection range, m (Person)

1800

Detection range, m (Deer)

2500

  Laser Rangefinder



Safety class for laser equipment according to IEC 60825-1:2014

-

Wavelength, nm

-

Max. measuring range, m

-

Measurement accuracy, m

-

Min. Measuring Range, m

-

  Reticle



Picture in Picture

Yes

Number of preloaded reticles

8 types / 4 colours

Number of Zero Profiles available

4

  WiFi Connection

Yes

  Video Recorder

Video & Snapshot

32Gb Internal

  Environmental Characteristics



Degree of protection, IP code (IEC60529)

IP66

  Power Supply



Output voltage, V

3.0 - 3.7

Battery type

CR123 x2 or RCR123A x2

Operating time on battery pack (at t=22°C), h *

4

External power supply, V

5V (USB Type-C)

  Connections and Compatibilities



Max. recoil power on firearm

Shock Proof to 1000G (300 Win Mag)

Mounting brackets on firearm

Full Picatinny rail (0 MOA)

  Weight & Size



Dimensions, mm

195 x 61 x 61

Weight, kg

0.42

  Warranty

3 years

  Trade Data



SKU (Model #)

MS-42R
