Product details
- Type Optics
- Vendor Vortex
- SKU VOSE31801
- Barcode 843829121316

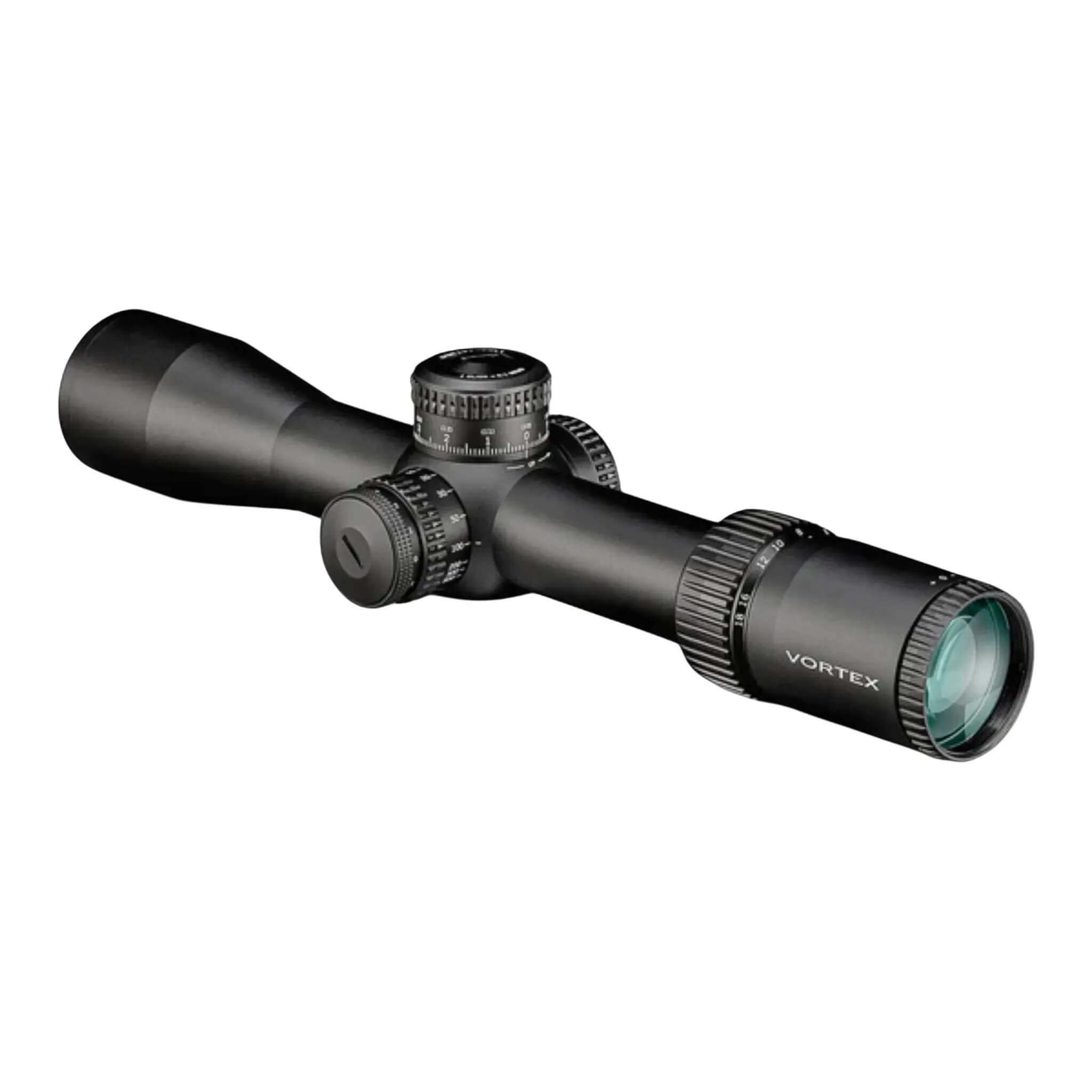

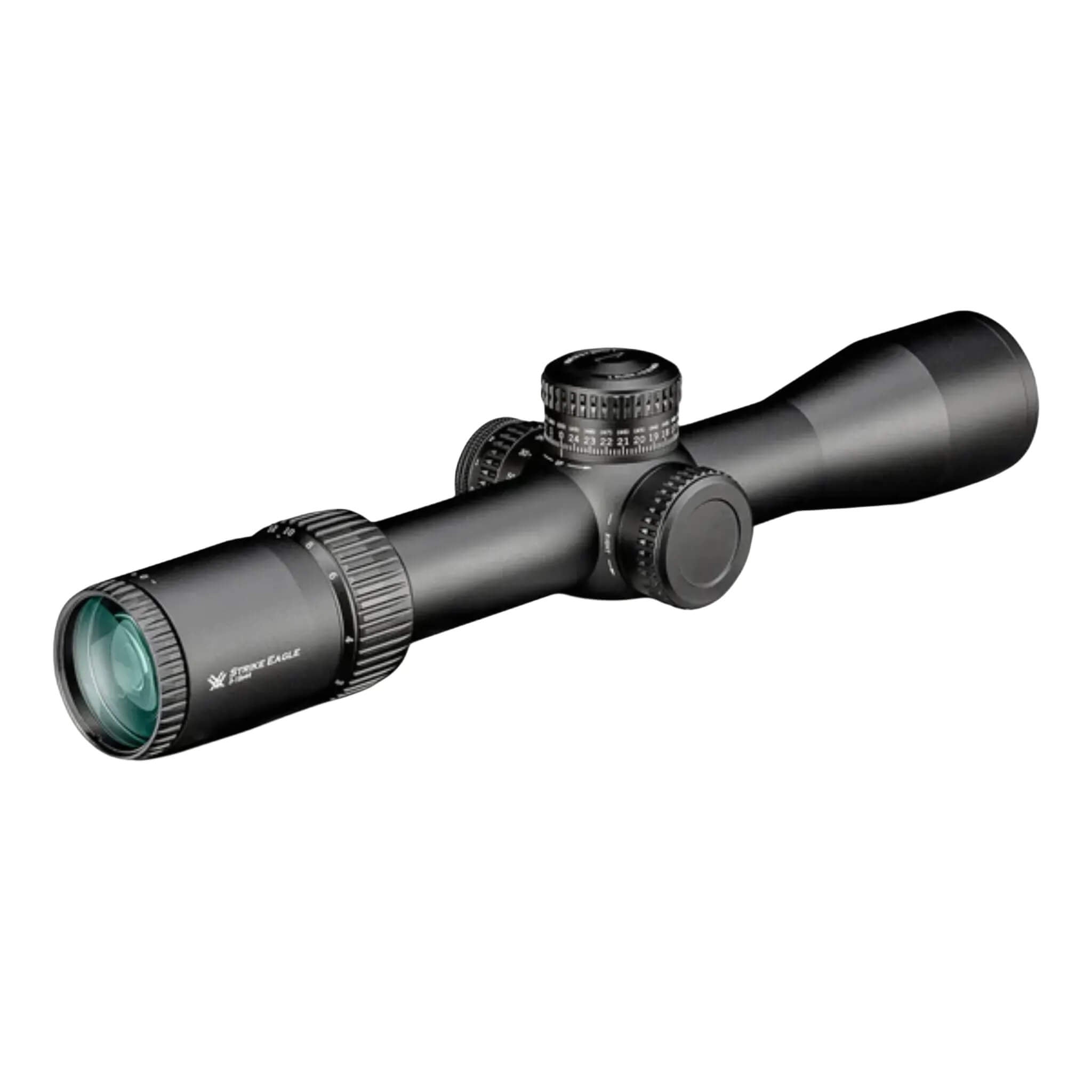

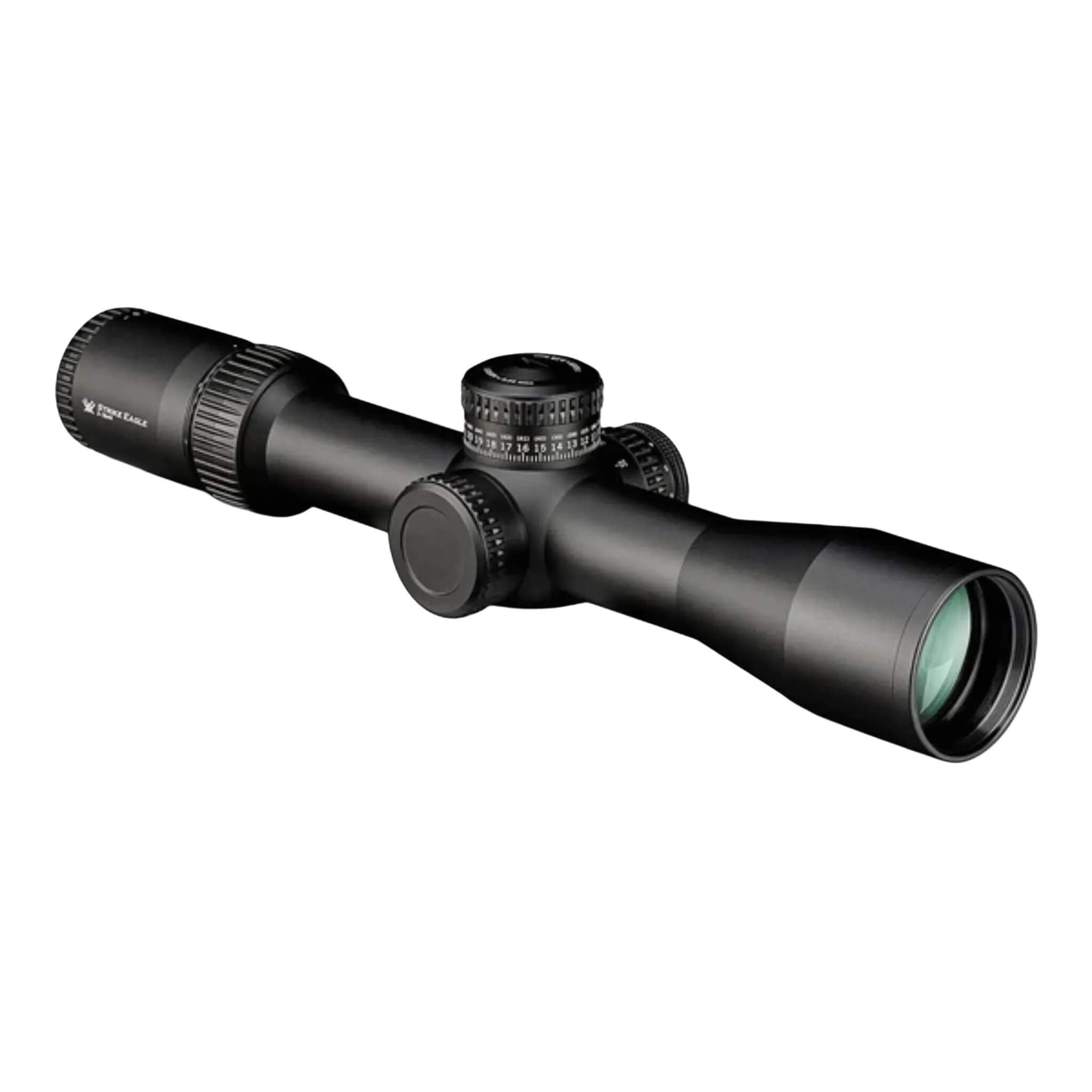

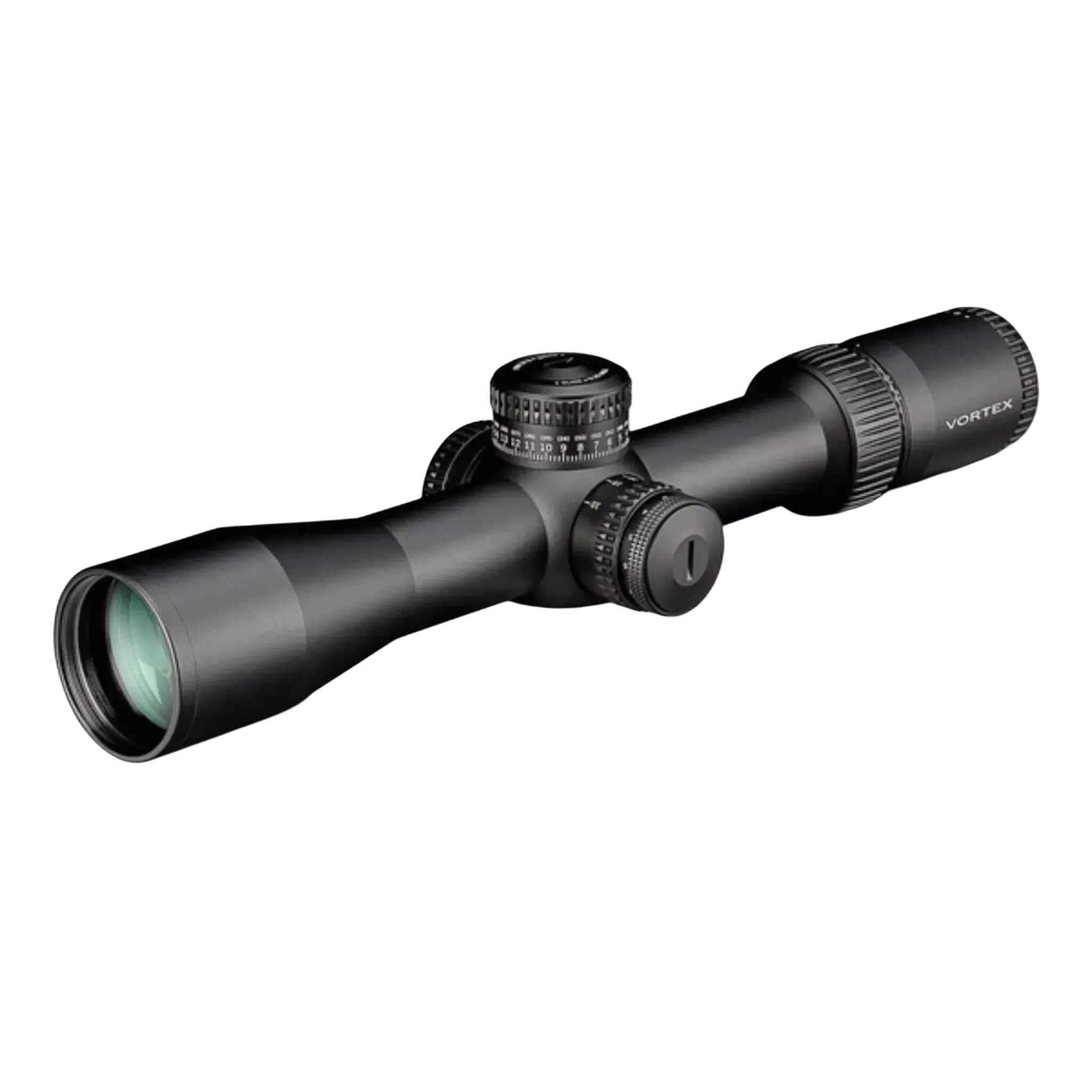

The gap between tactical mid- and long-range shooting is gone. Top off your carbine or DMR rifle with a first focal plane optic that’s versatile, tough, ultra-clear at any magnification, and specifically designed for rapid adjustment in fast-changing target scenarios.
Specifications
Magnification: 3-18x
Objective Lens Diameter: 44 mm
Reticle: EBR-7C (MOA)
Eye Relief: 3.8"
Turret Style: Exposed Elevation Capped Windage
Tube Size: 34 mm
Adjustment Graduation: 1/4 MOA
Parallax Setting: 10 yds
Max Windage Adjustment: 62 MOA
Max Elevation Adjustment: 154 MOA
Travel Per Rotation: 25 MOA
Length: 33.7 cm / 13.3"
Weight: 774 grams / 27.3 oz
Field of View: 39.3' - 6.7'
Features
Optical Features
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
XD Optical System - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in
Illuminated Reticle - Provides precise aiming under low-light conditions.
RevStop™ Zero System - Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments.
Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Fully Multi-Coated Lenses - Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance.
Construction Features
ArmorTek®- Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low Glare Matte Black Annodize Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Nitrogen Gas Purged - Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Waterproof - Designed to withstand harsh weather conditions
Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures
Shockproof - Designed to withstand the highest levels of recoil and impact.
Convenience Features
Fast Focus Eyepiece - Allows quick and easy reticle focusing
Throw Lever - The included throw lever can be installed for quick and easy magnification adjustments
EBR-7C (MOA)
Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines
