Sighting in the high seat - when the last minutes are crucial

Dusk is falling. You've been waiting for three hours. 1.5 square metres of peace and patience. Full control, clear field of view and the wind in your face. A big buck slowly moves into the open field. A focussed look through the scope. The image is bright and sharp. The impressive antlers are clearly recognizable. You take your aim - your finger on the trigger.

Bullet drop compensation - simply adjust instead of guessing

The RS-4 3-12x56 is optionally available with a BDC (Bullet Drop Compensator) turret. Thanks to this quick reticle adjustment, the riflescope can be quickly and safely adjusted to all distances. No guessing, no risk. Check your reading, turn, lock - done.

56 mm objective lens diameter - ideal for low light conditions

A riflescope with a large lens diameter makes all the difference, especially at dusk. The large lens allows for an extraordinary light transmission and thus additional hunting time. Whether in the morning or in the evening: the RS-4 3-12x56 gives you valuable minutes for the decisive moment.

12x magnification - your reliable companion from field to mountain hunting!

The 12x magnification and a generous field of view make this riflescope the perfect companion for precise shots over long distances. Whether you are targeting a chamois in steep terrain at close range or on a distant slope - the RS-4 3-12x56 offers you the optimum magnification for every hunting situation.

Parallax compensation – In focus from 10 metres

In practice, a target often becomes blurred when observed at long distances with high magnification. Regardless of magnification and distance, the MINOX RS-4 series guarantees consistently sharp images. Even at short distances with high magnification from 10 metres, errors are avoided.

Illuminated dot - powerful in any situation

Quick aiming to the point! The precise illuminated red dot of the MINOX RS-4 3-12x56 stands out clearly against dark surfaces - even in daylight. It can be dimmed in 10 stages and therefore does not blind you in the dark. The automatic energy-saving function is activated after 3 hours of non-use. Concentrate on the hunt, not on the battery of your scope.

Model	3-12x56
Magnification	3 - 12 x
Lens diameter (mm)	56
Diameter of exit pupil (mm)	10.0 - 4.6
Visual field in m at 100 m	13.3 - 3.3
Distance to exit pupil (mm)	90
Dioptre adjustment	-3 / +2
Elevation and lateral adjustment (per click)	1 cm / 100 m
Reticle adjustment range (elevation / lateral)	±200 cm / 100 m
Parallax adjustment	10 m up to ∞
Illuminated reticle	Yes, fibre optics
Focus plane	2
Power supply for the illuminated reticle	CR 2032
Nitrogen filling	Ja
Anti-fog and watertight	Yes, 4 m for 30 min
Central tube diameter (mm)	30
Length (mm)	365
Weight (g)	745
Order no.	80413880

Minox

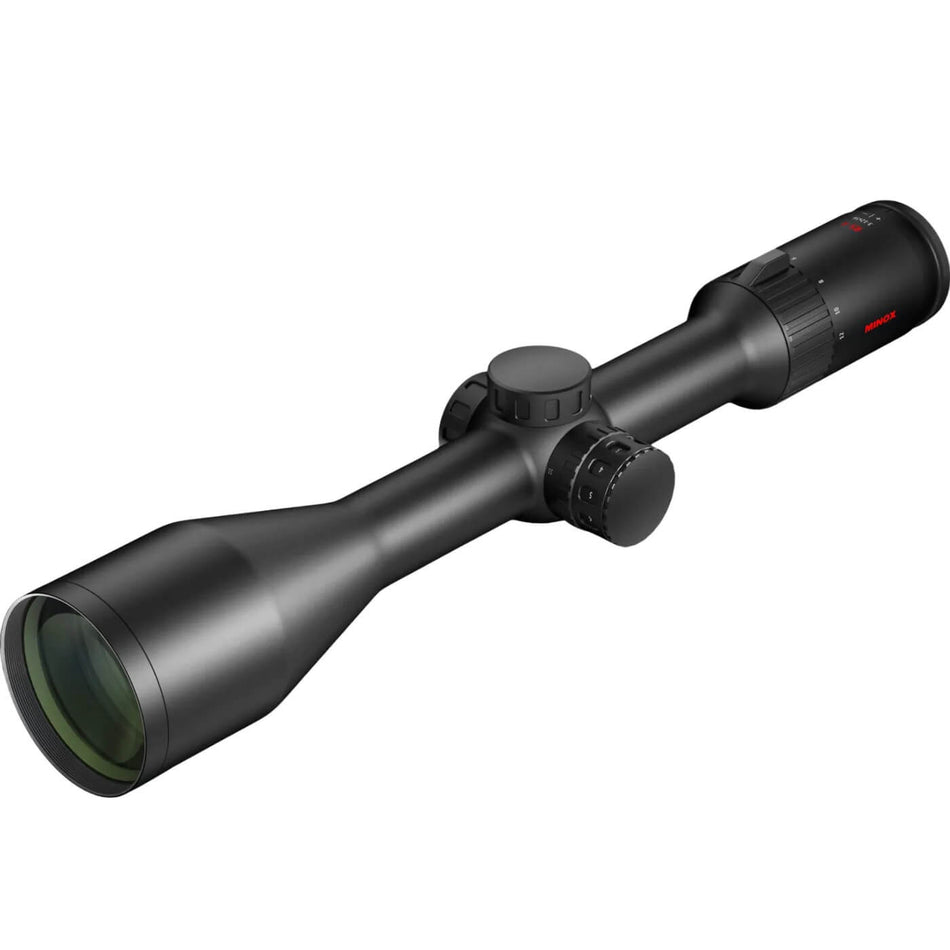

Minox RS-4 Rifle Scope 3-12x56

Minox DTC 650 Trail Camera

Minox DTC 400 Slim Wildlife Trail Camera

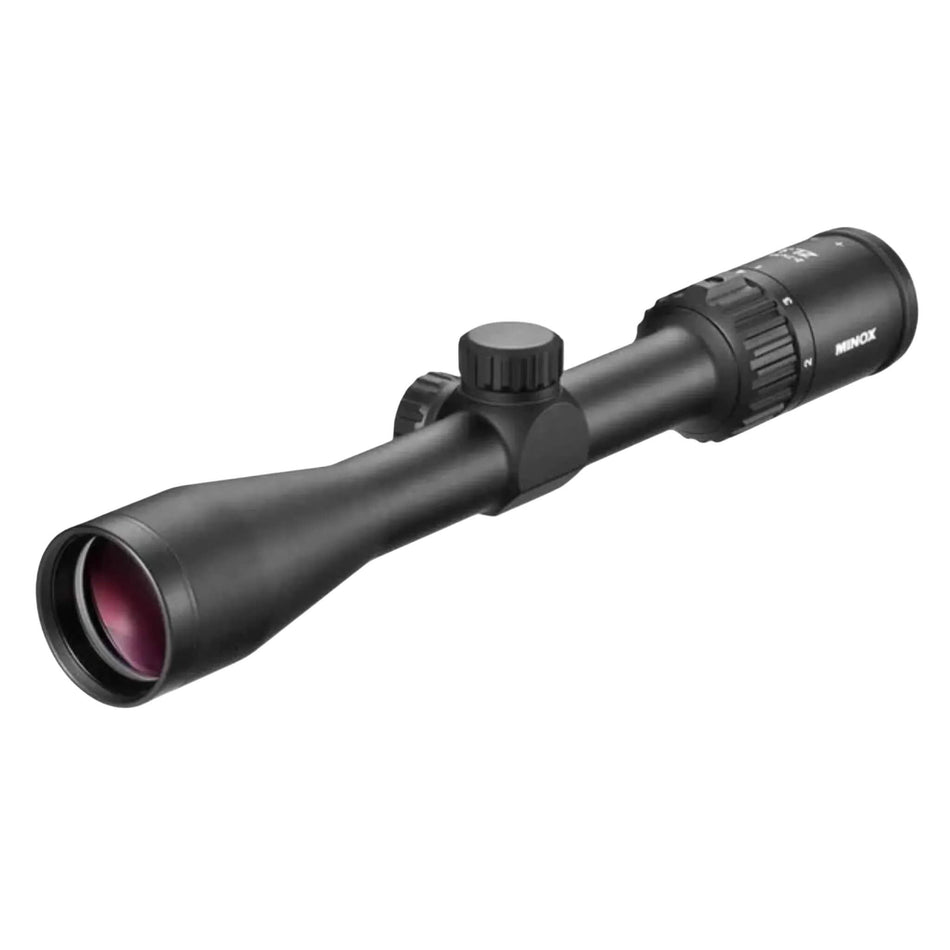

Minox ZL3 3-9x40 1in. Plex Riflescope

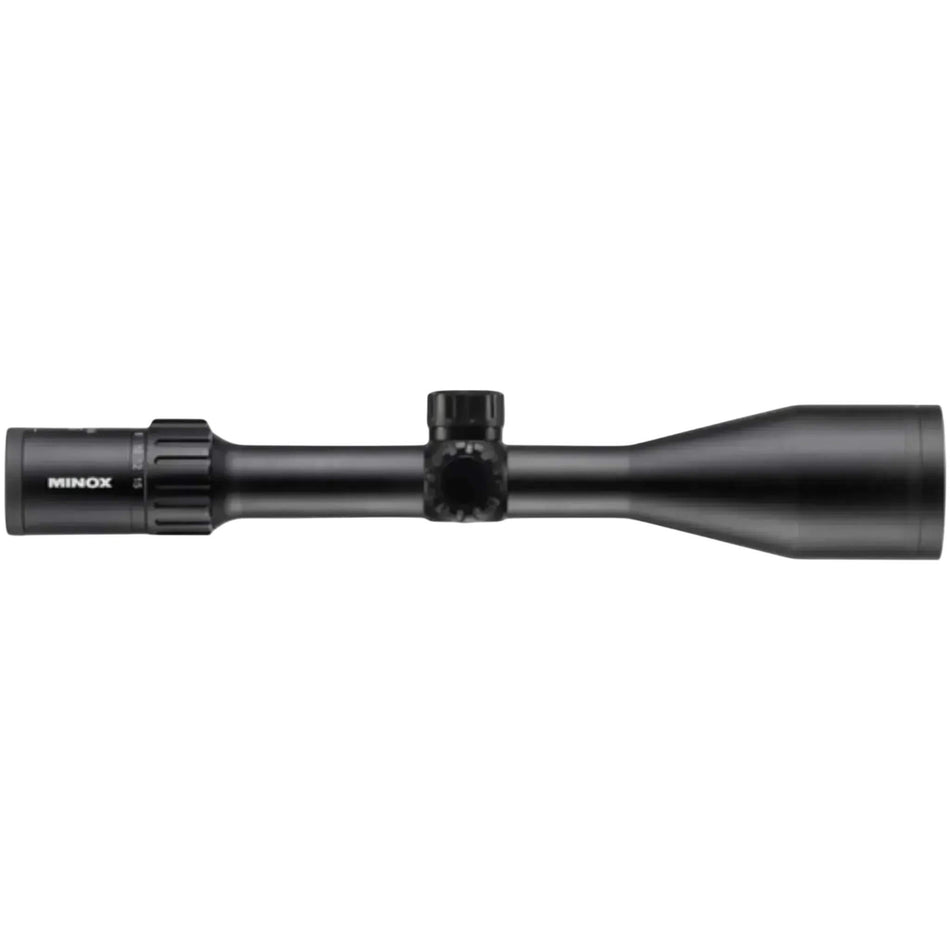

Minox ZX5 5-25X56 30mm SF Plex Reticle Riflescope
